Apex 1236
Quick Nesting · Drilling · Grooving · Milling

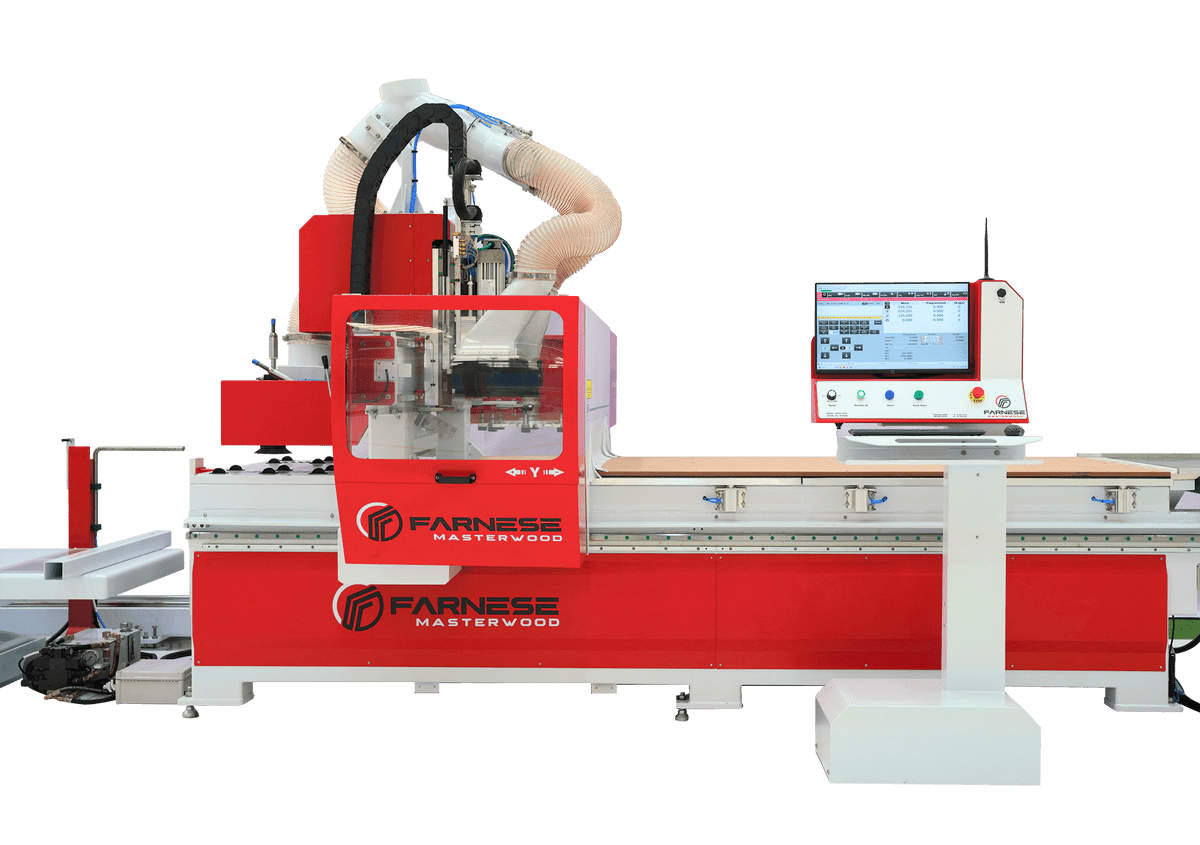

The APEX is a high-quality CNC machining centre with 3 controlled axes, equipped with a matrix table adapted to a variety of flexible working processes such as quick nesting, drilling, grooving, milling function. The APEX comes in multible sizes for any work size requirements.
- Crafted with precision
Product Features

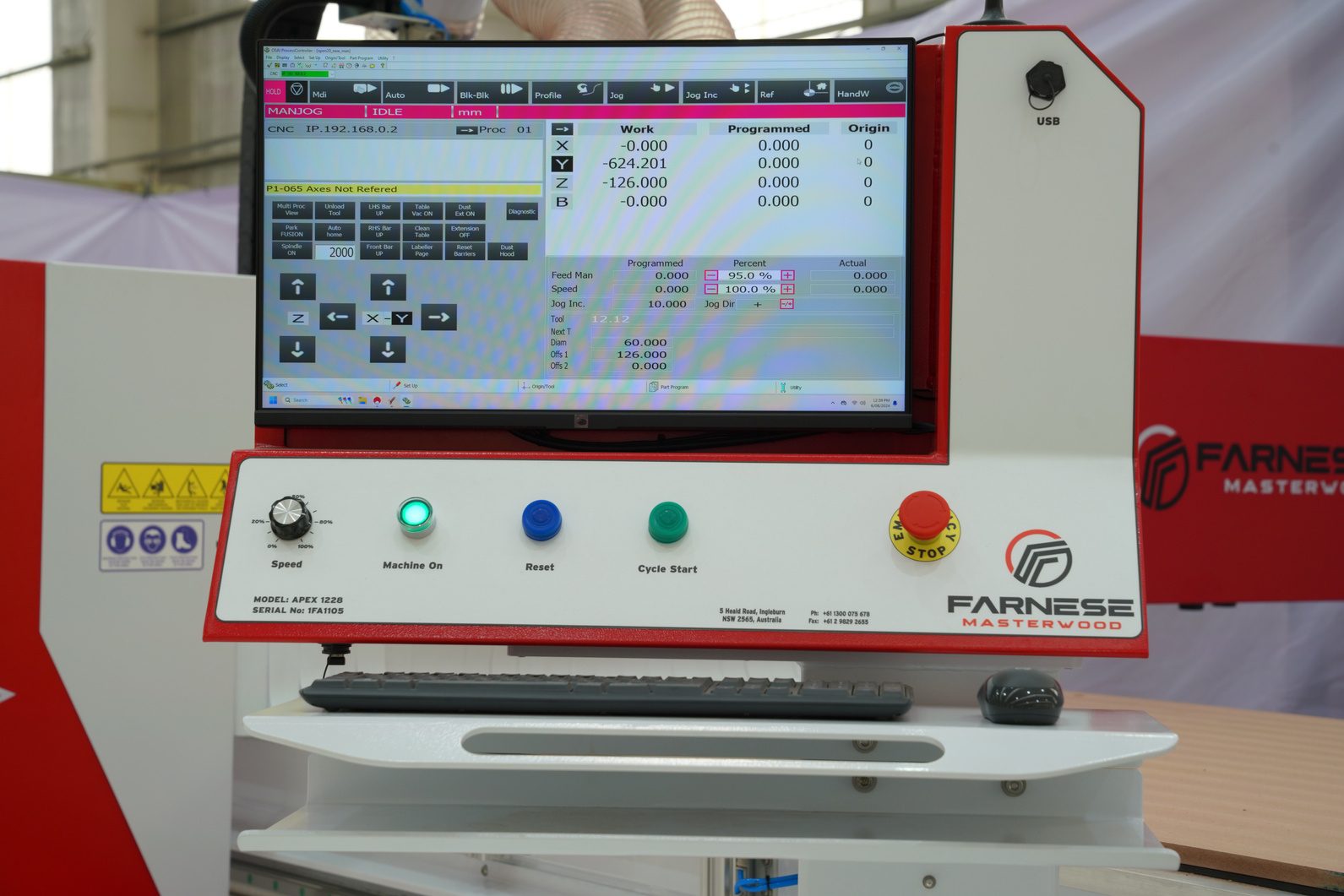

Osai CNC Control
High quality reliable Italian controller. Easy to customise interface and fitted with internet remote assistance for ease of support.
- Crafted with precision
Product Features

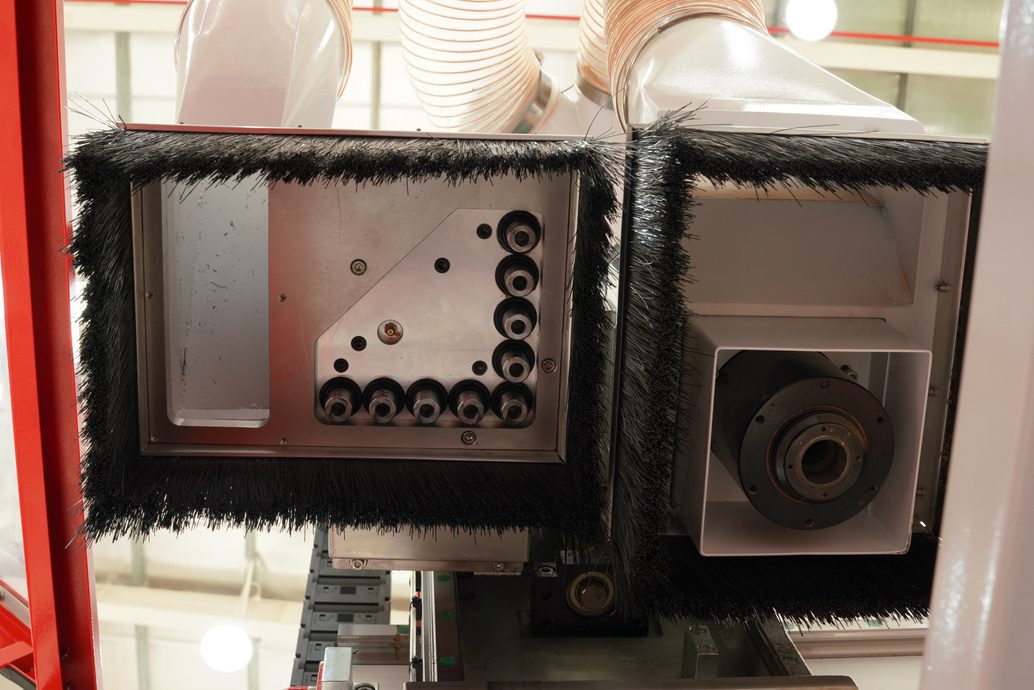

Router + Boring Head
Vertically mounted 9kW (larger on request), 24,000RPM electro spindle as well as a vertical drilling head with 9 independent mandrels spanning both X and Y axes.
- Crafted with precision
Product Features
High Precision Drivers
Drivers High precision absolute encoder servo motors with high precision gearboxes for high speed and positional precision.
- Innovation. Automation. Satisfaction.
Design Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
High performance machining centre incorporating italian technology.
Heavy duty machine frame with high accuracy ensures long lasting and stable running
Open software docking, and perfectly compatible with the diversified cv data format.
Easy to learn and operate with rapid routing, drilling, and grooving.
Widely used in the kitchen, furniture, sign writing, plastics, boat building, and aluminium industries.
- Belt Outfeed Conveyor: The motorised outfeed conveyor allows the easy unloading of machined panels away from the work table of the machine.
- Automatic Loading: The automatic scissor-lift table loads sheets of material onto the CNC Router which are then fed into the router for processing.
- Automatic Load/Label Printer: Allows the loading of a stack of panels with the forklift, as well as provide panel labelling with an on-board printer.
Technical Specifications
| Technical Specifications | Metric |
|---|---|
|
Maximum work size |
1220x3600mm |
|
Spindle Power |
9kW (11kW on request)
|
|
Spindle Max RPM |
24,000 |
|
Drill bank |
9 drills (larger on request) |
|
Z axis stroke |
280mm |
|
5 Vacuum zones |
Yes |
|
Automatic tool heigh sensor |
Yes |
|
Dust hood connection |
200mm |
|
Weight |
Approx 4,000kg |
|
Max X-Y Travel Speed |
76 m/minute |
|
16 position rotary tool changer |
Yes |
|
Osai controller |
Yes |
|
Hiwin linear rails
|
Yes |
|
Digital Inovance servo system
|
Yes |
|
Delta spindle inverter |
Yes |
|
Vacuum pump |
2x 250m3/h |
|
Voltage |
415V, 50Hz, 3 phase plus neutral
|
|
Optional |
Printer/Labeller Unload belt table Auto loader and lifter |
