Concept 350
Concept lets you keep working with your traditional system, learned through the Panel Saw, and apply other advantages of beam saw machines or discover new methods even more functional and efficient.
- Crafted with precision
Product Features
Groove/Incision Adjustment
The adjustment of depth of the groove or incision is made simply by rotating a bushing with numerical counter decimal. Concept is equipped with a reading system of the panel able to determine the width automatically placing the blade in proximity of the end of the panel itself, avoiding the wait for empty runs with consequent saving of time.
- Crafted with precision
Product Features

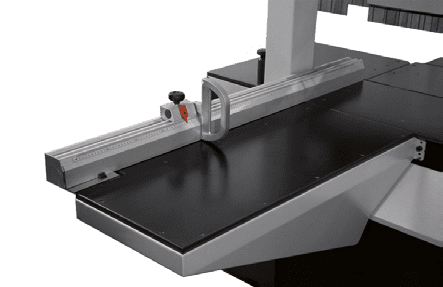

Extendable Fence
The strong telescopic fence extendable up to 2.500 mm (3.400 mm on request) with two mechanical stops (one tipper), is installed on a large plan to give proper support to the panel. On demand will be provided a digital display.
- Crafted with precision
Product Features
Space Saving System
The rear guide motorized and programmable double stop rotating, thanks to its innovative system, manages independently which one of the two stops use according to the required size. The distance of 420 mm between the two stops allows to have a valid support for the parallel cuts.
- Innovation. Automation. Satisfaction.
Design Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.

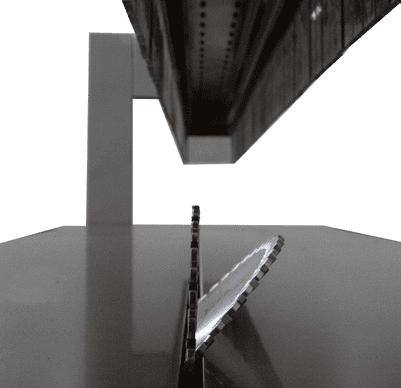

The saw blade unit has a long shaft that runs vertically along ground bars, ensuring stability and minimal vibration.
The speed change is very quick and easy, executed through an opening above the working table.
The sliding system on the carriage, with large diameter bearings rolling along tempered and ground prismatic tracks, provides excellent smoothness and straight cutting accuracy of ± 0.05 mm.
It has a 5.5 kW motor for the main saw blade and a 0.55 kW motor for the scoring saw, providing efficient and powerful cutting performance.
