Filter Press

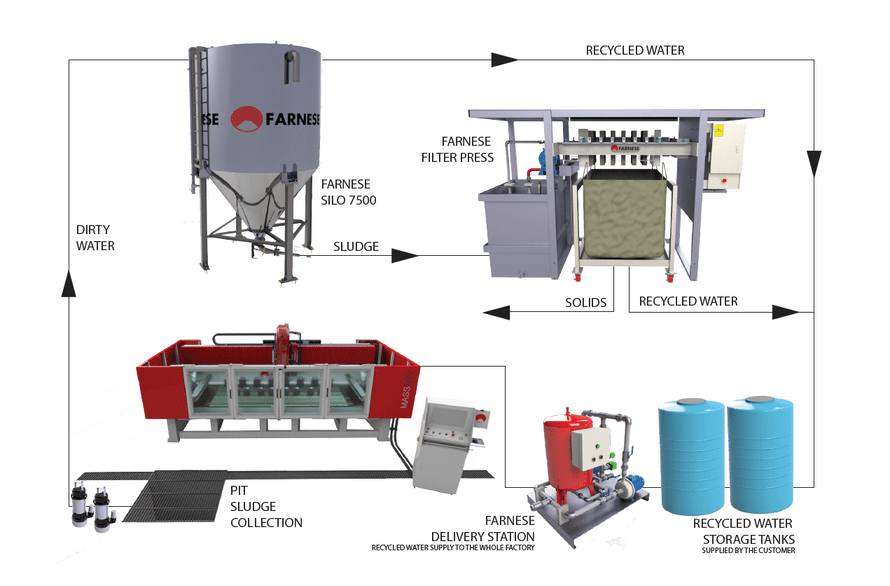

With clean recycled water being an ever more important part of the stone fabrication industry, the addition of a filter press into your water treatment system makes perfect sense. Not only environmentally, but economically.
Efficient wastewater treatment actually saves you money in the long term. Removing the solids from your water before recycling it back through your equipment helps to reduce everyday wear and tear. Tighter regulations around contaminates and particulate matter means that all factories should be paying attention to their recycled water systems.
The Farnese Filterpress ensures better separation of the sludge by dewatering and compacting the particulate into a compressed brick-like waste product that will be released into a movable cart for easy disposal. The result is more usable recycled water, saving money and further reducing operating costs.
- Crafted with precision
Product Features

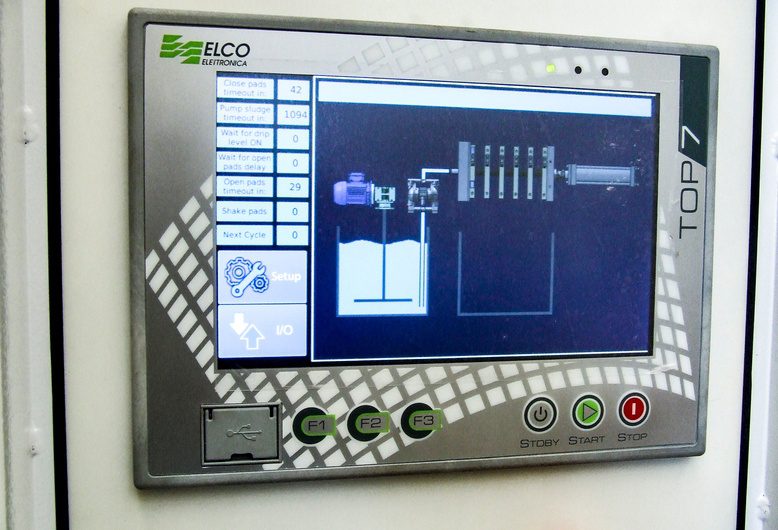

Easy To Use Interface
Like all Farnese equipment, we’ve made the Filter Press simple to use, with everything available from an intuitive, easy to use touch screen control panel.
- Crafted with precision
Product Features

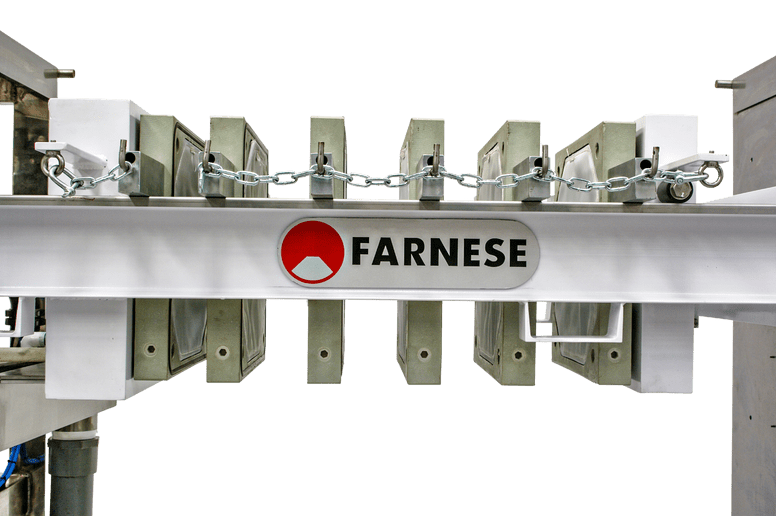

10 Press Filters
10 Press Filters take care of compacting and dewatering the particulate, before discharging the compressed bricks into the mobile sludge cart positioned below.
- Innovation. Automation. Satisfaction.
Design Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
The Farnese filter press features a userfriendly touchscreen interface, making it easy to operate and monitor the filtration process in real-time.
With 10 press filters, the system offers substantial filtration capacity, efficiently handling large volumes of material.
Its automatic sludge control system ensures optimal performance by continuously adjusting sludge levels without manual intervention.
The 650-liter mixing tank allows for thorough mixing of materials, ensuring a consistent and homogeneous mixture before filtration.
Technical Specifications
| Dimensions of Installed Machine | Metric | Imperial |
|---|---|---|
|
Width |
3000 mm |
118.1 in |
|
Depth
|
1130 mm |
44.5 in |
|
Height |
1960 mm |
77.2 in |
|
Weight |
900 kg |
1980 lb |
|
|
||
|
Features & Feeds: |
||
|
Mixing Station |
YES |
|
|
Automatic Sludge Control |
YES |
|
|
Touchscreen Interface |
YES |
|
|
Big Bag Trolley |
YES |
|
|
Automatic Sludge Dumping
|
YES |
|
|
Dripping Tank
|
YES |
|
|
Mixing Tank Capacity |
650 Litres
|
171.7 GAL |
|
Number of Filters |
10 |
|
|
Power Required |
400V 3ph 50Hz |
208V 3ph 60Hz |
|
10A + Neutral
|
20A |
|
|
Connections Required (Supplied By Customer) |
Power, Water, Compressed Air |
|
This equipment can be installed outdoors, consult your local Farnese dealer.
CONSULT YOUR LOCAL FARNESE DEALER FOR ANY TOOLING REQUIRED.
