Fusion 3S 25/13
The Fusion 3S 25-13 is a high-precision, heavy-duty machine, renowned for its superior quality and durability. It features an automatic tool change system and versatile spindle rotation, making it suitable for various applications, including countertops.
- Crafted with precision
Product Features
Tool Calibration Pad
The integrated sensor pad allows the operator to quickly and accurately calibrate each tool. The tool length is then automatically stored in the tool offset file.
- Crafted with precision
Product Features

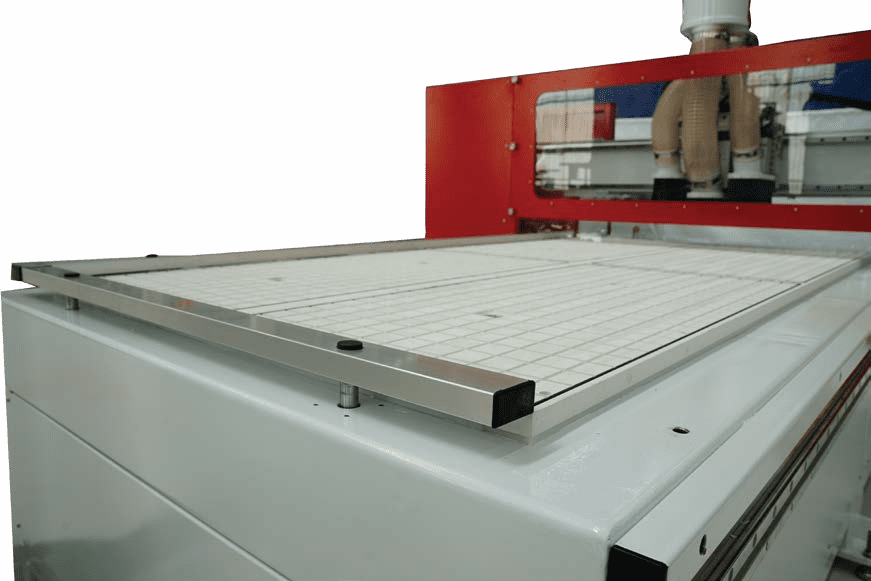

Locator Stops
The table is fitted with two heavy duty pneumatically activated locator bars. Precise and effortless positioning of each work piece is assured.
- Crafted with precision
Product Features
Drive Guide System

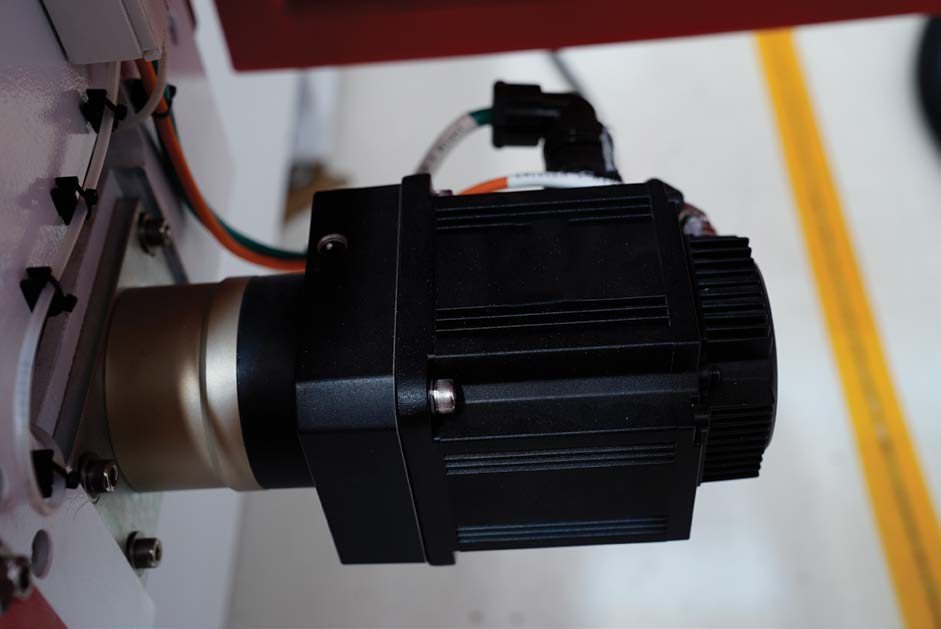

All axis are driven by ESTUN Servo motors with Planetary Gear boxes.Superior quality linear guides and bearings units are used on all three of the machine’s axis. Precise movement along the X and Y axis is achieved via induction hardened oblique/helical rack and pinion drive systems. Z axis (vertical) movement accuracy is assured via a precision ground re—circulating ball screw.
- Innovation. Automation. Satisfaction.
Design Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
Gantry – Style machining centre for processing solid wood, MDF/Particle board panels, plastics, aluminium and composite materials.

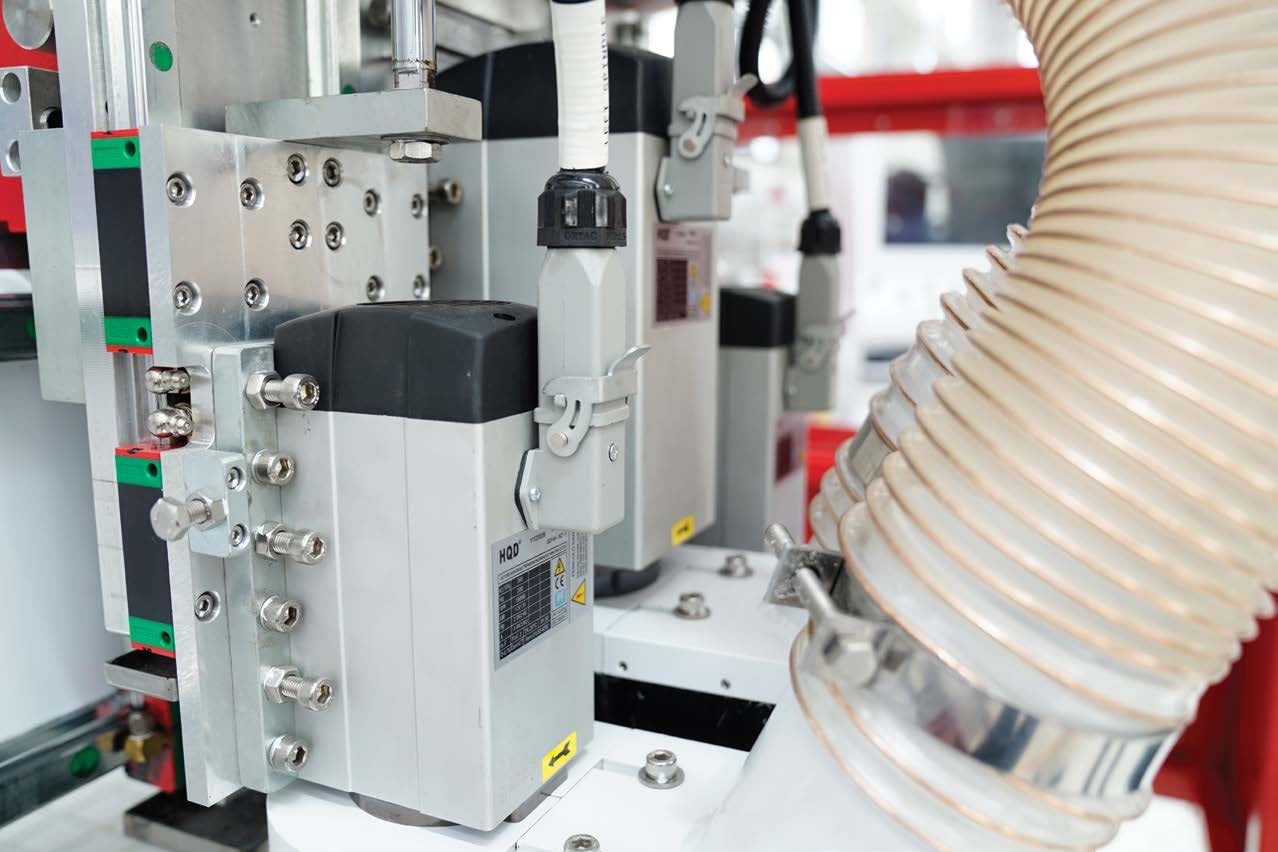

High performance (industry proven) precision router spindle.
Providing exceptional durability and stability, ensuring precise and consistent performance during high-speed machining.
Optimize material usage by nesting parts closely together, reducing waste and enhancing production efficiency.
Technical Specifications
| Technical Specifications | Metric |
|---|---|
|
X — Axis STROKE |
1480 mm |
|
Y — Axis STROKE |
2525 mm
|
|
Z — Axis STROKE |
250mm |
|
TABLE SIZE |
1220 X 2440 mm |
|
MAX. FEED SPEED X,Y — Axis |
45m /min |
|
MAX. FEED SPEED Z — Axis |
5m /min |
|
No. Of Spindles |
3 |
|
Tool Holder Shank Main |
ER32, Air Cooled |
|
Tool Holder Shank Drill |
ER20, Air Cooled |
|
TOOL SHANK DIA For Router Bit |
20 mm Max |
|
TOOL SHANK DIA For Drill Bits |
12.7mm Max |
|
MOTOR POWER AT Head |
4.5 kw (6.0hp) |
|
MOTOR POWER Drilling |
1.5 kw (2hp) |
|
MOTOR POWER Vacuum Pump 320bm/hr |
5.5 kw (7.5hp) x 2 |
|
NC CONTROLLER |
NC Studio |
|

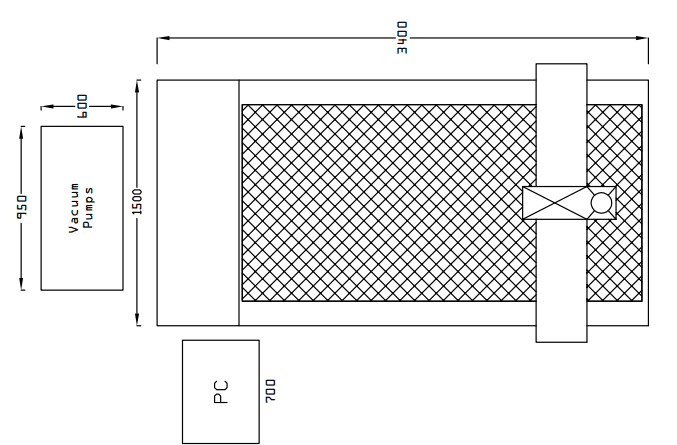

Floor Area |
2.4m x 3.4m |
|
Height |
1700 mm |
|
Weight |
2300 kg |
|
TOTAL CONNECTED LOAD |
15 kw / 28amp
|
