Fusion APX 1228R
The Fusion APX 1228R is a high-precision, heavy-duty machine equipped with a 9kW HSD router, renowned for its superior quality and durability. It features an automatic tool change system and versatile spindle rotation, making it suitable for various applications, including countertops.
- Crafted with precision
Product Features
Spindle

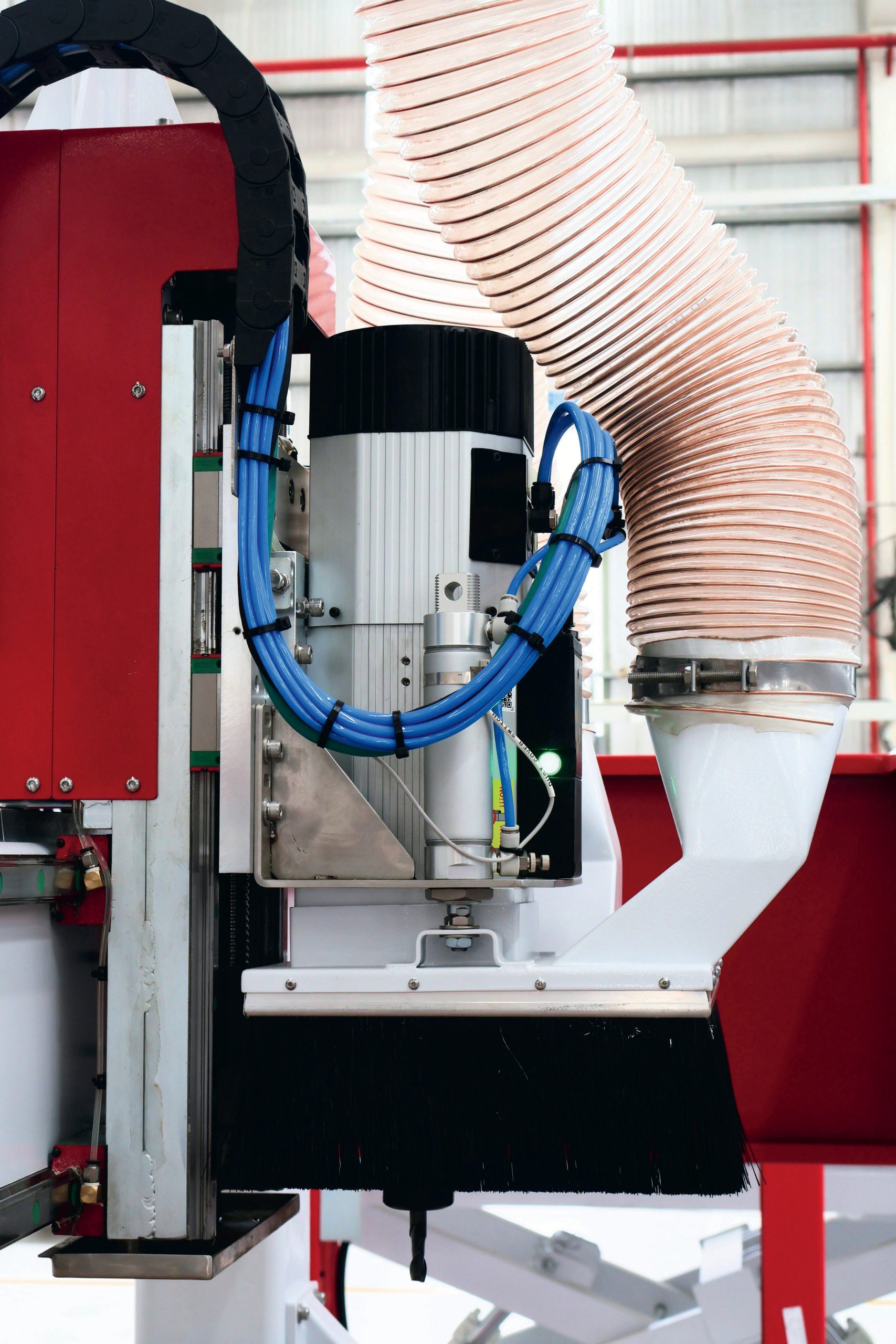

High precision heavy—duty 9kW (12.0Hp) HSD router with internal cooling fan and ISO30 collet. Manufactured in Italy, HSD routers are renowned worldwide for their superior quality and durability. The Automatic tool change feature combined with left or right spindle rotation make this a very versatile machine that is also suitable for counter tops.
- Crafted with precision
Product Features
PC Control

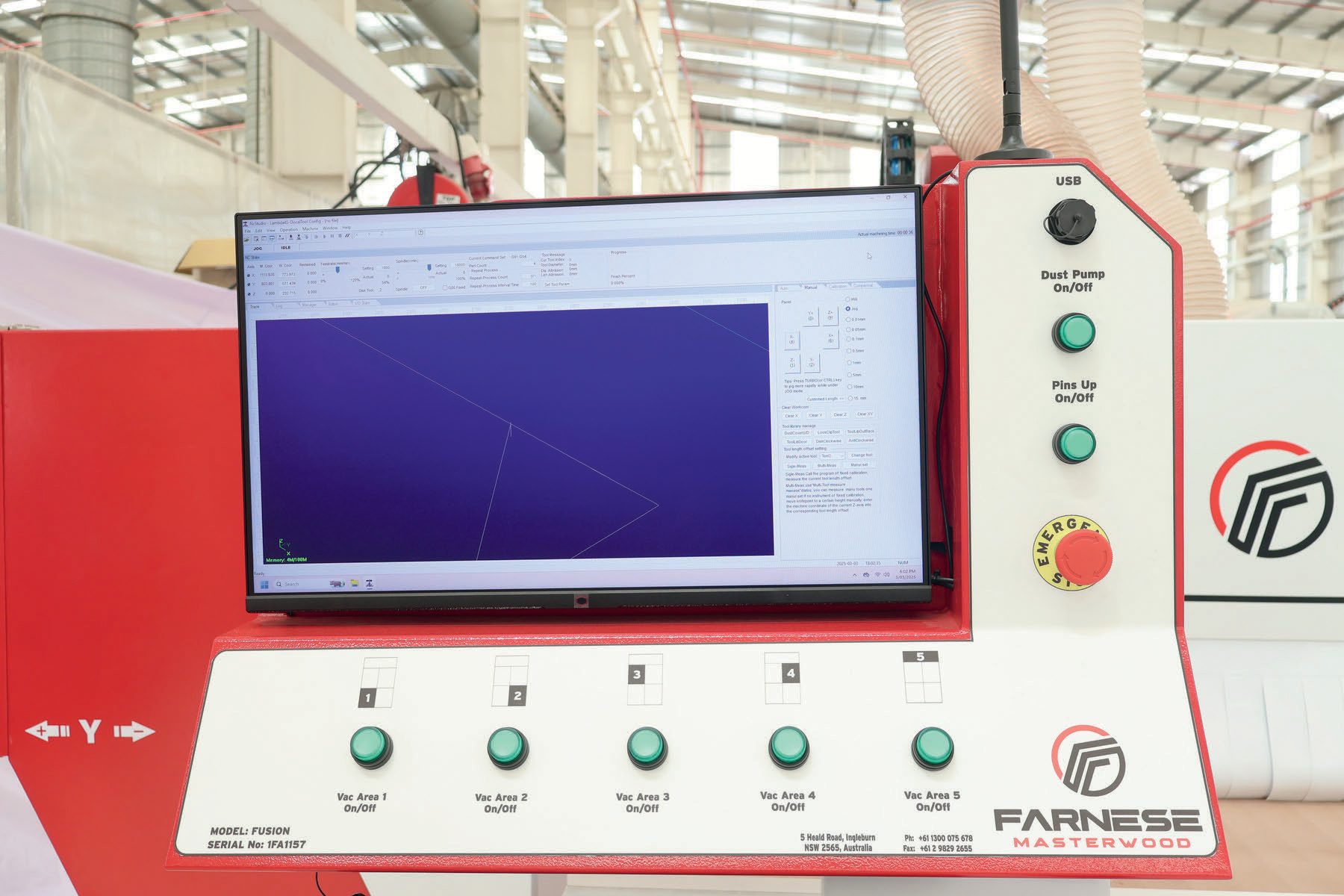

High quality reliable Italian controller. Easy to customise interface and fitted with internet remote assistance for ease of support.
- Crafted with precision
Product Features
High Precision Drivers

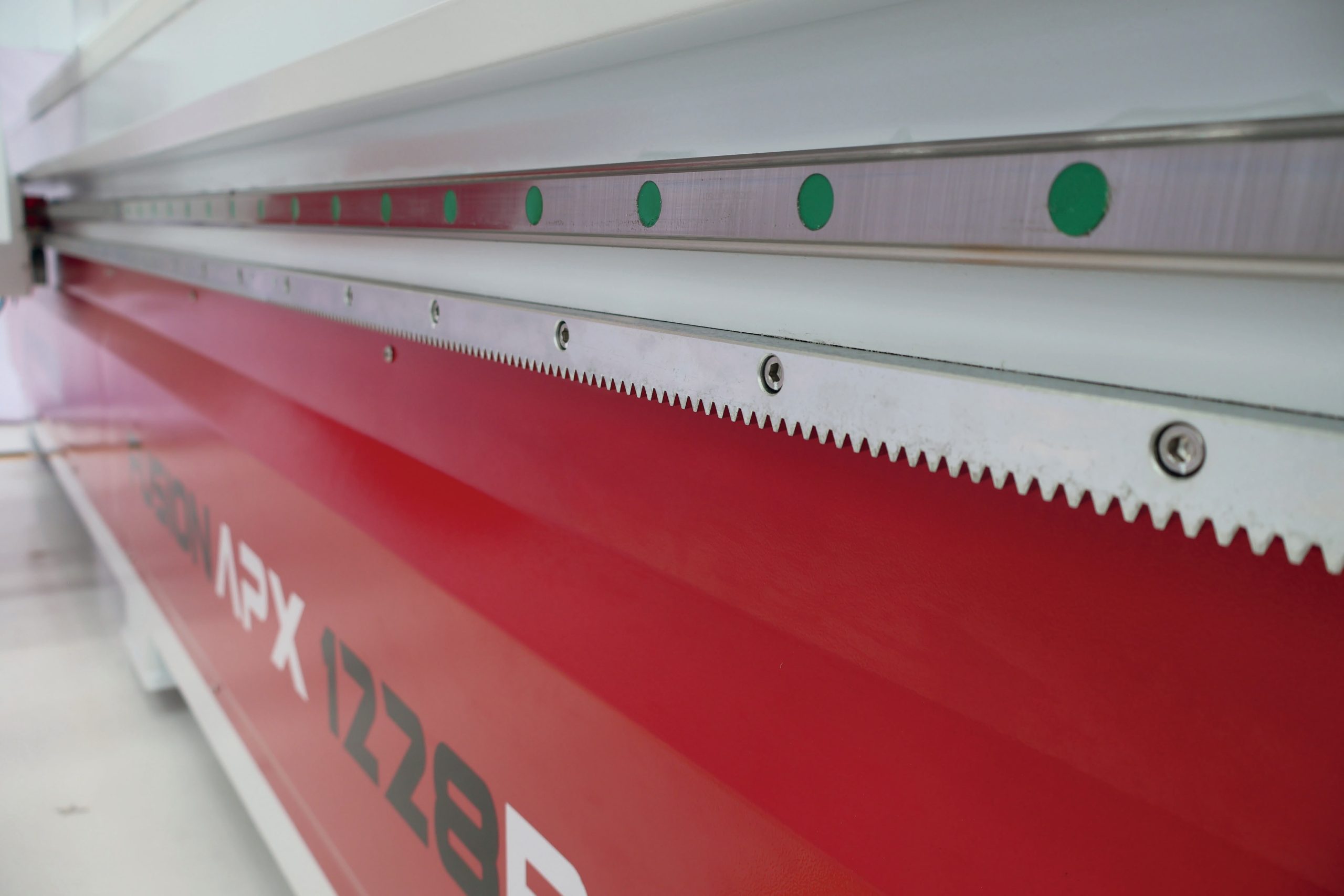

All axis are driven by ESTUN Servo motors with Planetary Gear boxes. Superior quality linear guides and bearings units are used on all three of the machine’s axis. Precise movement along the X and Y axis is achieved via induction hardened oblique/helical rack and pinion drive systems. Z axis (vertical) movement accuracy is assured via a precision ground re—circulating ball screw.
- Innovation. Automation. Satisfaction.
Design Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.

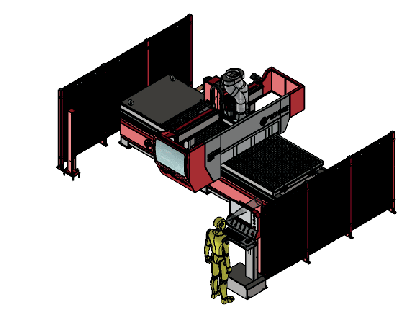

Gantry – Style machining centre for processing solid wood, MDF/Particle board panels, plastics, aluminium and composite materials.
High performance (industry proven) precision router spindle.
Providing exceptional durability and stability, ensuring precise and consistent performance during high-speed machining.
Optimize material usage by nesting parts closely together, reducing waste and enhancing production efficiency.
Technical Specifications
| Technical Specifications | Metric |
|---|---|
|
Table Size |
2800 X 1220 mm
|
|

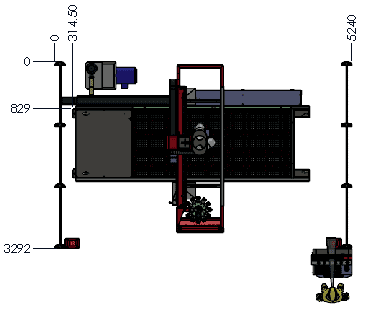

Floor Area
|
2400 x 4000 mm |
|

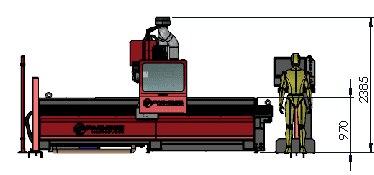

Height
|
1850 mm |
|
Weight |
2300 kg
|
|
X – Axis Stroke |
1300 mm
|
|
Y – Axis Stroke |
2850 mm |
|
mmZ – Axis
|
250mm
|
|
X,Y – Axis Max. Feed Speed |
50m /min |
|
Z – Axis Max. Feed Speed |
5m /min |
|
At Head WIth |
|
|
No. Of Spindles |
1 |
|
Tool Holder Shank Main
|
ISO30, Air Cooled |
|
Number Of Tools |
12
|
|
Speed |
1000 – 24000 rpm |
|
Tool Shank DIA
|
25 mm Max |
|
AT Head Motor Power
|
9.0 kw (12.0hp) |
|
Vacuum Pump 320bm/ hr
|
7.5kw |
|
Air Pressure |
6 bar (* 85psi)
|
|
NC Controller
|
NC Studio
|
