Jib Crane 150
Indispensable for your workshop
The JIB CRANE 150 is one of the most important elements in any workshop. With 150kg lifting capacity, it is designed to be bolted directly to the ground thanks to a large base plate. This base plate is anchored to the ground by bolts which are chemically set to a levelled concrete floor which must be at least 150mm in thickness.
- Innovation. Automation. Satisfaction.
Design Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
150kg lifting capacity

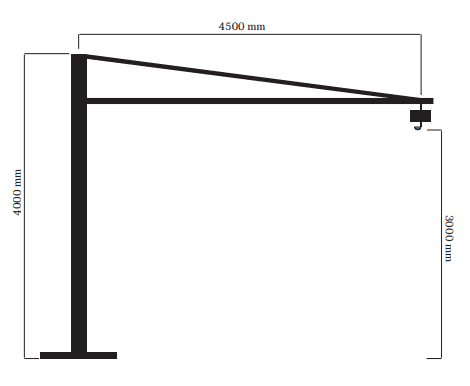

Column height 4 metres
Lifting hook max height 3 metres
Max jib reach 4.5 metres
Jib rotation (friction braked) 270 degrees
4 vacuum pads (225 sq. cm each) adjustable positioning
Rotary vane vacuum pump (with oil-free compression)
Colour-zoned vacuum gauge
120 litre vacuum reserve tank
2 Stage variable speed electric raising/lowering
Fully powder coated
Technical Specifications
