Jib Crane 360
Indispensable for your workshop

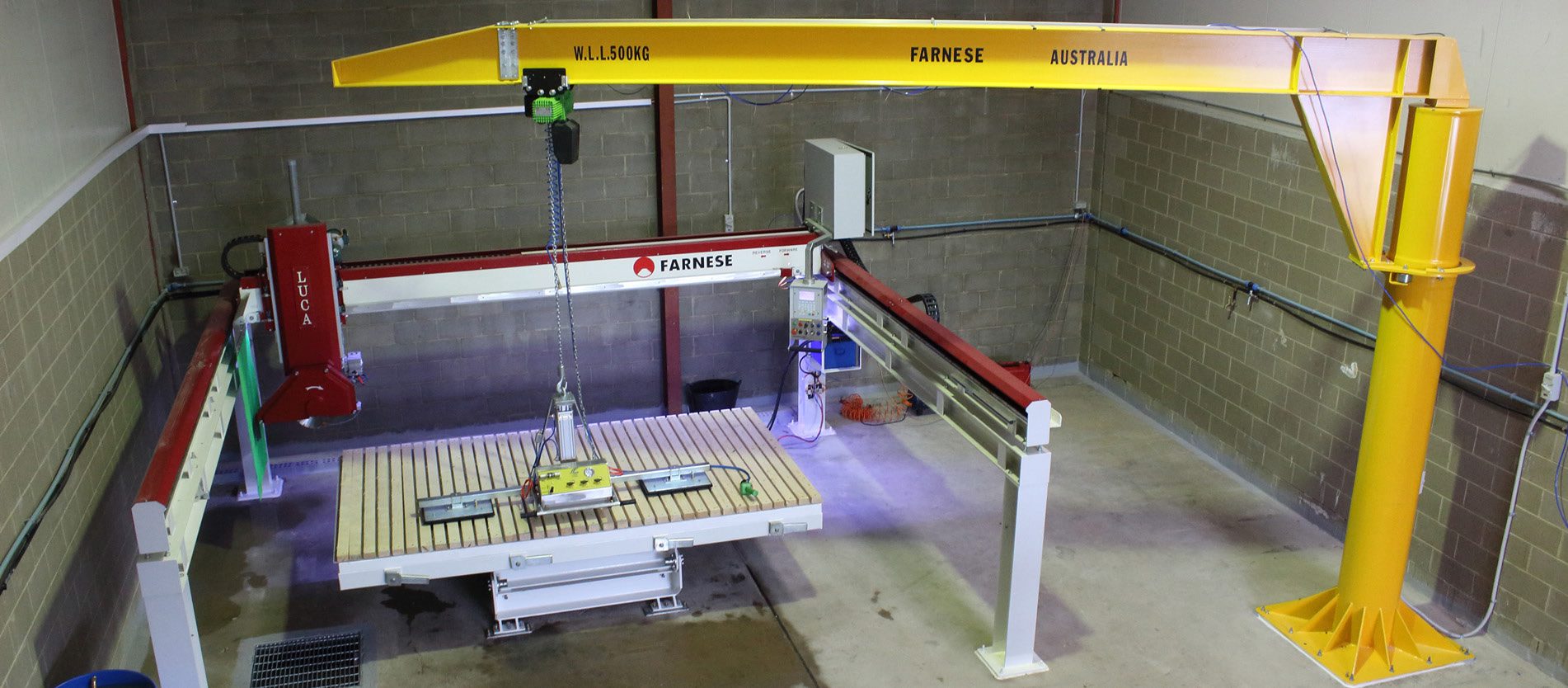

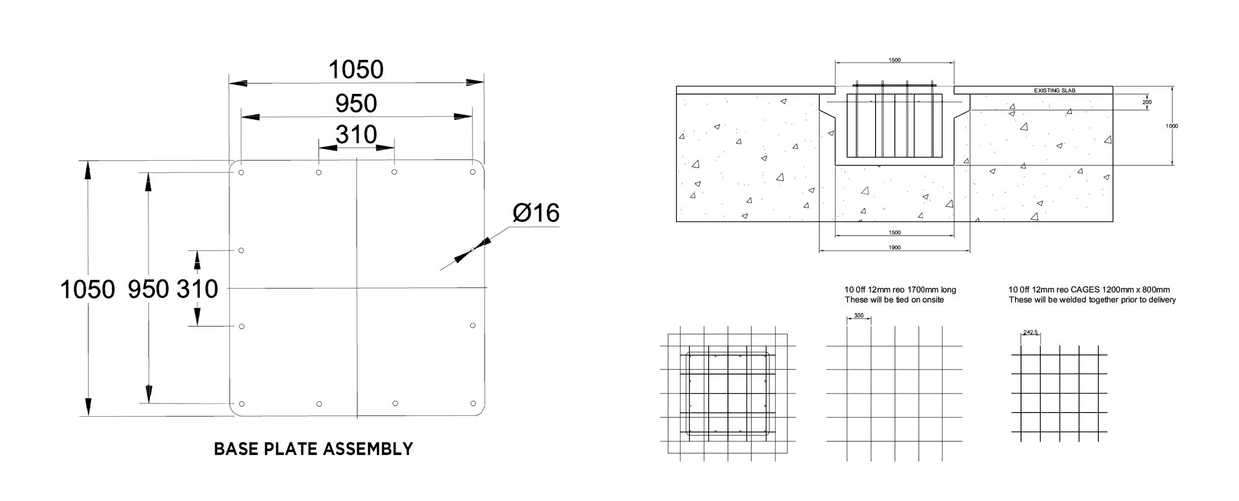

The JIB CRANE 360 is one of the most important elements in any workshop. It is designed to be bolted directly to the ground thanks to a large base plate. This base plate is anchored to the ground by bolts which are chemically set to a levelled concrete floor which must be at least 150mm in thickness.
The JIB CRANE 360 is fitted with a motorized chain hoist; the two speed motor enables the operator to manoeuvre the hoist with ease and accuracy in an up down motion.
- Innovation. Automation. Satisfaction.
Design Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
This crane is capable of handling loads up to 500 kg.
Equipped with a motorized chain hoist, the crane provides efficient and effortless lifting.
The crane features a two-speed hoist motor, offering versatility in operation.
Designed with user-friendliness in mind, the Farnese Jib Crane 360 is straightforward to operate.
Technical Specifications
| Dimensions of Installed Machine | Metric | Imperial |
|---|---|---|
|
Length |
7300 mm |
287.4 in |
|
Width |
1100 mm |
43.3 in |
|
Height |
4000 mm |
157.5 in |
|
Weight |
900 kg |
1980 lb |
|
|
||
|
Equipment Ranges |
||
|
Arm Range (Max from the Centre) |
6765 mm |
266.3 in |
|
Arm Range (Min from the Centre) |
1050 mm |
41.3 in |
|
First Joint |
0 – 360° |
0 – 360° |
|
Power Required |
400V 3ph 50Hz |
208V 3ph 60Hz |
|
3A + Neutral |
5A |
|
|
Connections Required (Supplied By Customer): |
Power, Water, Compressed Air |
|
|
Tooling |
Consult Your Local Farnese Dealer For Any Tooling Required |
|
NB – VACUUM LIFTER SHOWN FOR ILLUSTRATION PURPOSES ONLY.
FARNESE DO NOT SUPPLY BOLTS AND CHEMICAL SETS.
*Owing to the constant updating of our designs, descriptions and technical data shown in our drawings and folders are not binding. Possible alterations deemed by the makers as convenient will be effected at any time without previous notice.
