Maggi Big 800 Radial Arm Saw

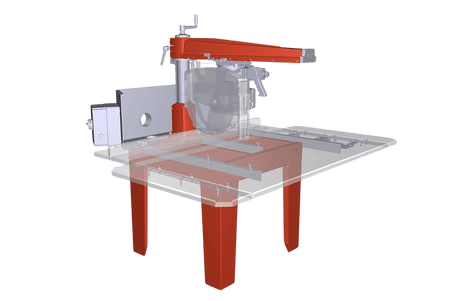

Radial-arm saw for straight (90°) cross cutting, ripping and bevel cutting at 45° left and right. The movement of the cutting unit along the arm, on guides and ball bearings, is manual, aided by a return spring, so is the blade tilting with mechanical locking system at 45° left. The pillar group is made of cast-iron and fixed on a solid frame and legs made of steel. Working bench in MDF. Manufactured according to EC standards.
- Crafted with precision
Product Features
Versatile

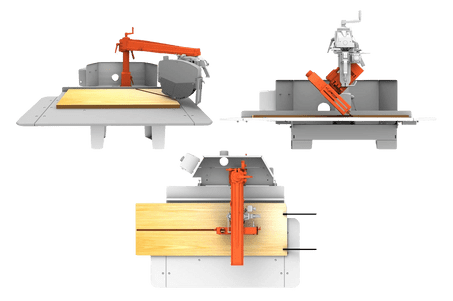

Swivelling arm up to 45° left and right and left tilting cutting-head (stop and lock at 45°) allow many different cutting operations for the greatest versatility. The cuttinghead can also turn by 90° for accurate ripping.
- Innovation. Automation. Satisfaction.
Design Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
Designed with a small footprint, making it an ideal choice for workshops with limited space. Despite its compact size, it doesn’t compromise on functionality or performance.

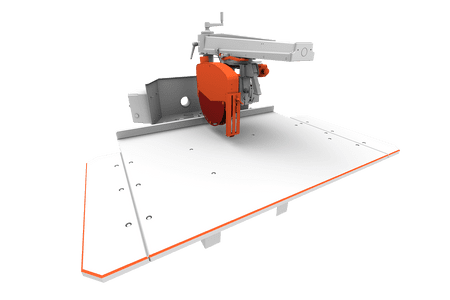

The cutting unit moves manually along the
arm on guides and ball bearings, with a return
spring aid and a mechanical locking system at
45° left.
Ensuring even those with minimal experience
can operate it effectively. Its intuitive controls
and straightforward setup make it easy to use,
allowing for quick adjustments and precise
cuts.
Comes equipped with a feature that allows it to be seamlessly connected to a dust collector. This integration is crucial for maintaining a clean and safe working environment, as it effectively captures and removes the dust generated during cutting operations.
Technical Specifications
| Dimensions of Installed Machine | Metric |
|---|---|
|

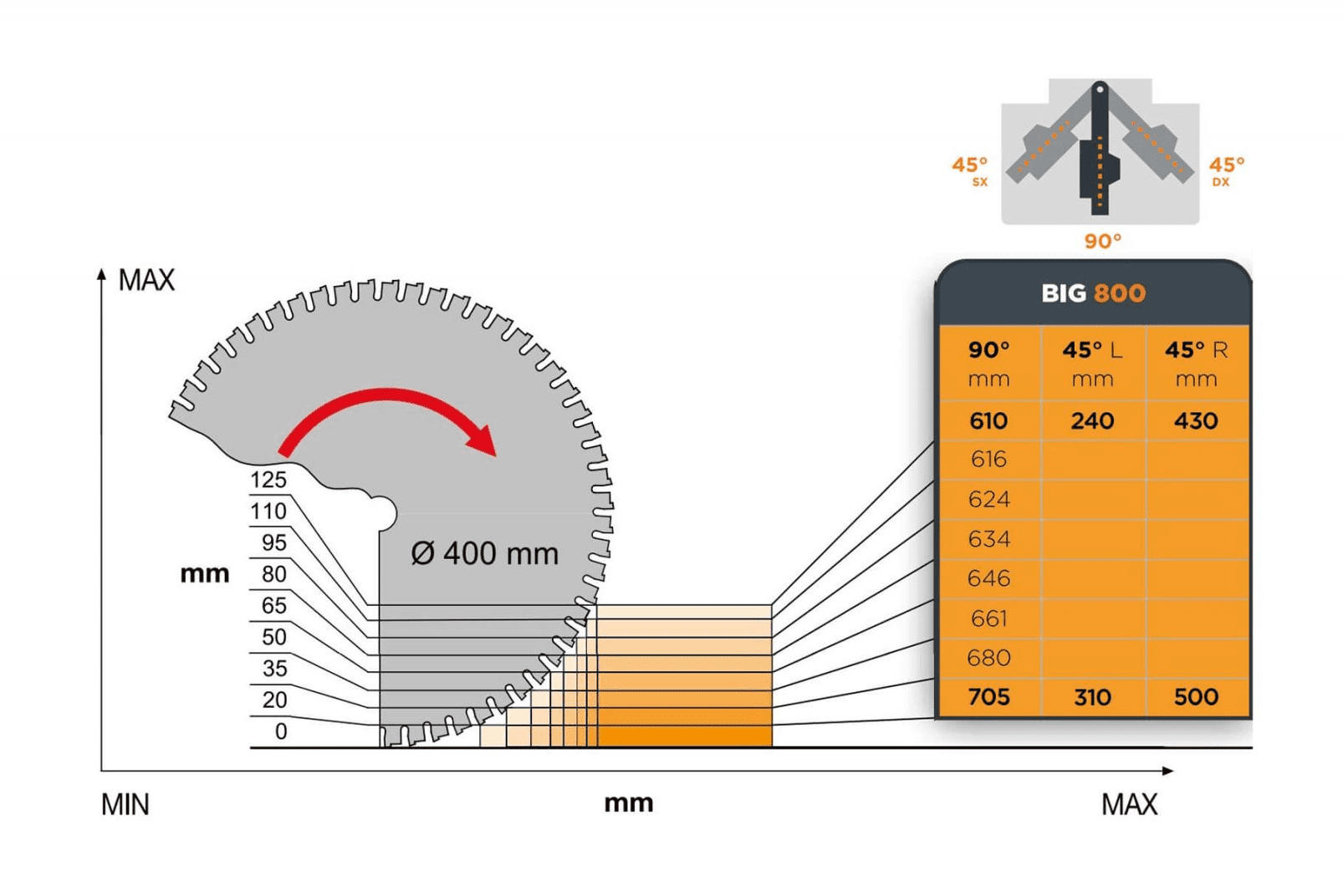

Max. cutting height |
125 mm |
|
Max. cutting width |
705 x 20 h mm
|
|
Min. cutting width |
610 x 125 h mm |
|
Max. length of workpiece |
infinito |
|
Max. cutting width for ripping |
1030 mm |
|
Cutting height at 45 °
|
0 – 80 mm |
|
Min. and Max. cutting width at 45° (right) |
430 – 500 mm |
|
Min. and Max. cutting width at 45° (left) |
240 – 310 mm |
|
Height of blade from working bench
|
0 – 45 mm |
|
Blade diameter |
400 mm |
|
Blade bore diameter |
30 mm |
|
Motor |
HP / KW 4/3 RPM 2800 |
|
Working bench dimensions
|
1690 x 1155 mm |
|
Diameter of dust collection nozzle on blade guard |
60 mm |
|
Diameter of dust collection nozzle on rear hood
|
100 mm ( n.2) |
|
Overall dimensions of full-assembled machine and net weight |
1690 x 1560 x h 1598 mm / 225 Kg |
|

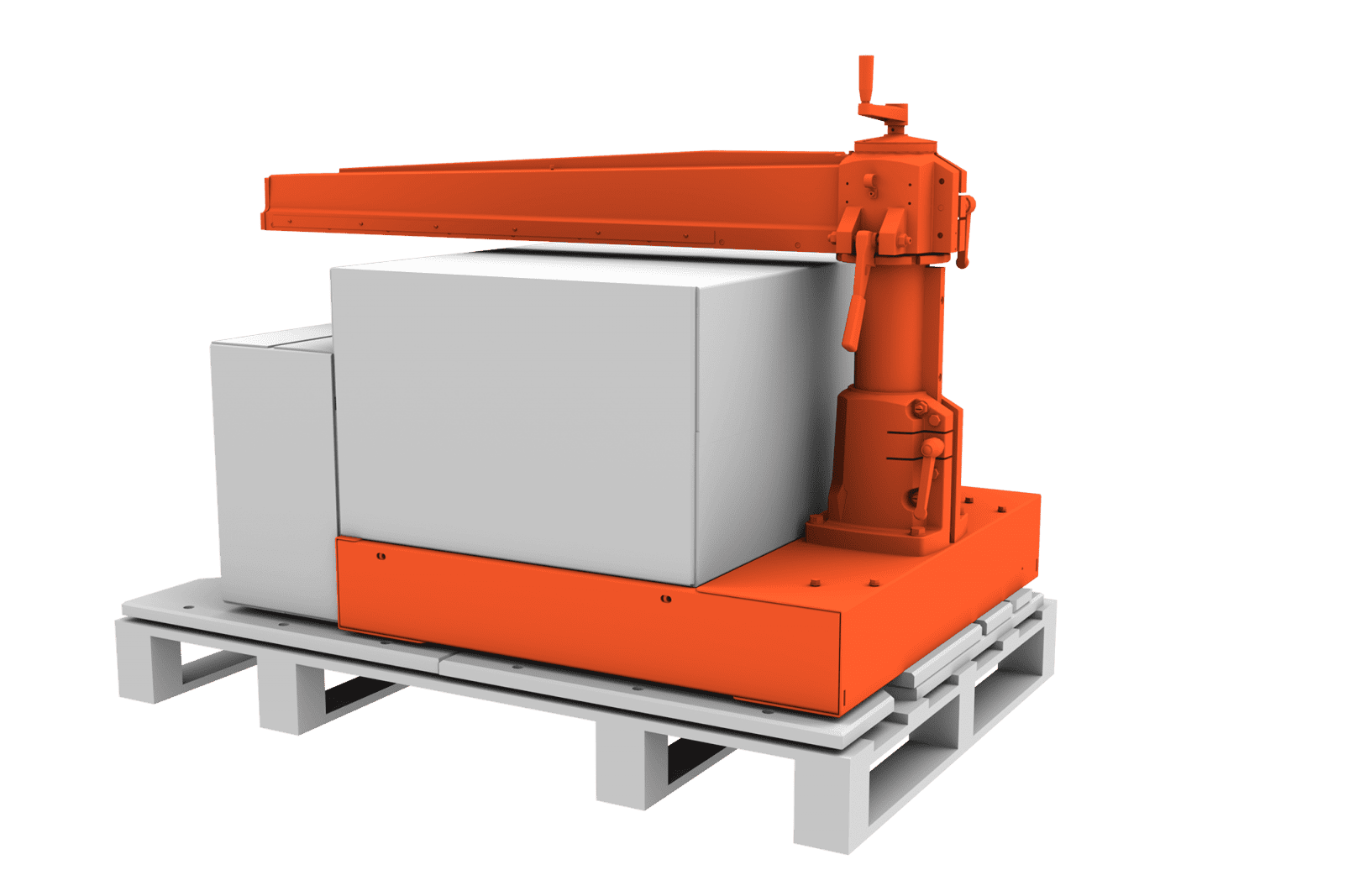

Dimensions of packed machine and gross weight
|
1420 x 850 x h 750 mm – 237 Kg |
|
Dimensions and gross weight – HALF ASSEMBLED MACHINE |
1380 x 920 x h 960 mm – 251 Kg |
