Maggi Boring System 21 Prestige
The original and best from Maggi Technology, 100% manufactured in Italy since 1963. This single head drilling machine features 21 spindles, catering to all woodworking needs. It’s perfect for complementing a work center, saving time and managing horizontal drilling tasks. The machine boasts Pneumatic Tilting, which allows the head to be positioned from 0° to 90° in all positions, and Lateral Reference Squares made of cast iron, adjustable in row with a magnifying glass and vernier for precision.
- Crafted with precision
Product Features

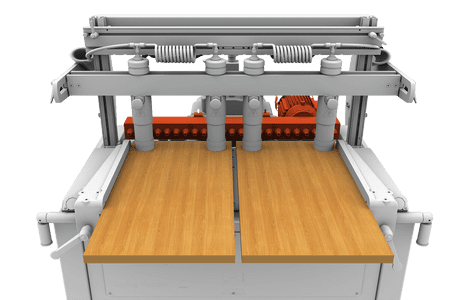

Fast Horizontal Drilling
Thanks to the 640 mm interaxis and the large working table, You can process 2 panels having 316 mm width at the same time.
- Crafted with precision
Product Features

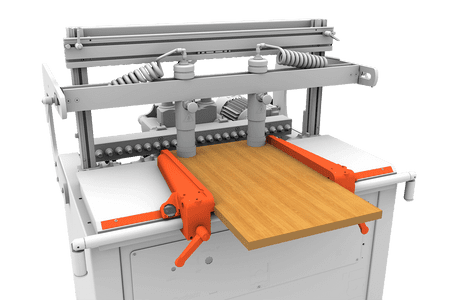

Perfect Panel Joints
The ref. side fences, adjustable along a metric bar, with magnify glass and nonius , always represent a precise reference point for the operator and guarantee the perfect parallelism of the drilling operations.
- Crafted with precision
Product Features

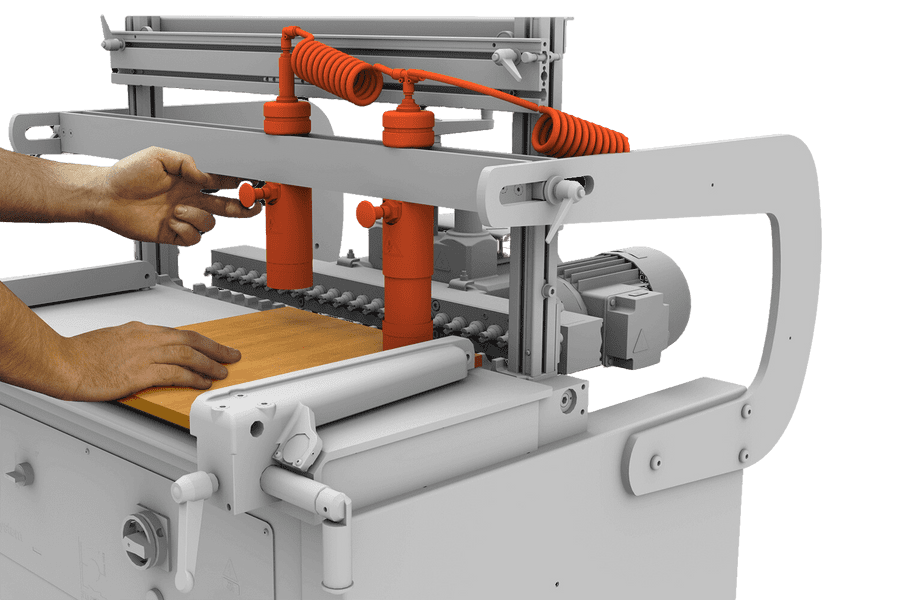

Safe Panel Hold Down
The quick-positioning, safety, holddown clamping units ensure the greatest stability and steadiness of the working piece during the working cycle and the highest accuracy of the drilling process.
- Innovation. Automation. Satisfaction.
Design Features
It includes a Patented Spiral System, a drilling depth adjustment tool that enables quick and easy setting of all measurements on a millimetric scale based on the drill bit size. This system ensures accuracy and efficiency, making it an indispensable tool for any woodworking shop looking to enhance productivity and precision.
Built with robust materials to withstand demanding usage, ensuring longevity and reliable performance in intensive woodworking environments.
Adjusting the boring depth is extremely easy.
The head can be tilted from 0° to 90°, providing flexibility for various drilling angles, making it adaptable to different woodworking tasks.
Features a small footprint of 1 square meter, ensuring it fits comfortably in workshops with limited space.
Technical Specifications
| Technical Specifications | Metric |
|---|---|
|
Spindles |
N 21 |
|
Left and right spindles on each head |
N. 10 left – N. 11 right |
|
Spindle interaxis
|
32 mm |
|
Total interaxis |
640 mm
|
|
Max. tool diameter |
40 mm |
|
Max. boring depth
|
55 mm |
|
Height of the working table
|
860 mm |
|
Max. panel thickness |
60 mm (130 mm optional) |
|
Max. panel dimensions
|
900 x 3000 |
|
N° 1 motor
|
HP 2 / KW 1,5 – RPM 2800 |
|
Standard pneumatic pressure
|
BAR 6/ 8 |
|
Air consumption
|
10 NL / cycle
|
|
Dust-collection hood diam.
|
80 mm |
|
Overall dimensions – net weight
|
1015 x 990 x 1270 – 260 KG |
|
Package dimensions ( machine) |
1115 x 950 x 1050 mm |
|
Package dimensions (long fences) |
1500 x 120 x 60 mm |
|
Gross weight
|
290 KG |
