Maggi Steff 2034
The Maggi Steff 2034 Power Feeder is an essential tool for any woodworking professional, designed to enhance both safety and efficiency. This robust feeder offers four fixed speeds (4, 8, 11, and 22 meters per minute), ensuring a consistent and even feed-rate that improves the finish quality of your workpieces. Its safety features reduce the risk of injury by keeping the operator’s hands away from the tool, making it a reliable choice for demanding tasks. The unit’s adjustability allows it to cater to various sizes of workpieces, offering versatility for different woodworking projects.
- Crafted with precision
Product Features
High Productivity
Having a total interaxes of 704 mm and with two boring-heads, the machine can perform a double row of parallel line holes in just one working cycle, and process a 3000 mm long side-panel in just four working cycles.
- Crafted with precision
Product Features
Effective Panel Hold-Down And Drilling Accuracy
N. 6 quick-adjustable, pneumatic, safety clamps ensure the perfect panel hold-down, which results into always accurate drilling operations.
- Crafted with precision
Product Features
Fast And Effective
It considerably speeds up the vertical row drilling operations with respect to a single-head boring machine.
- Innovation. Automation. Satisfaction.
Design Features

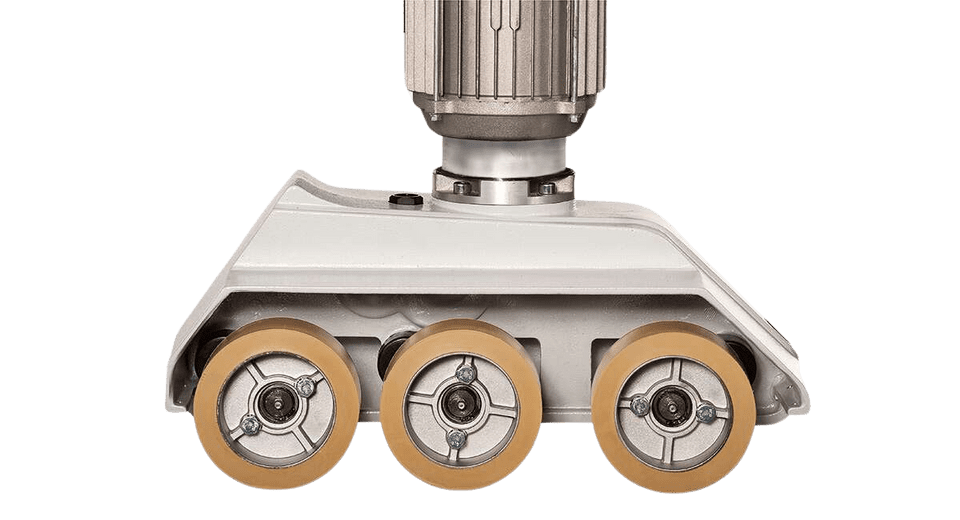

Built to last, the Maggi Steff 2044 Power Feeder is equipped with 50-Shore wheels made of patented “Feeder Grip” rubber, providing a strong grip and long-lasting durability. This power feeder not only improves the quality of your work but also ensures a safer and more efficient working environment, making it an invaluable addition to any workshop.
It offers four fixed speeds (4, 8, 11, and 22 meters per minute) to accommodate different working needs.
The unit ensures a constant and even feedrate, which improves the finish quality of the workpiece.
The power feeder includes a safety device that prevents operators from having to place their hands close to the tool, reducing the risk of injury.
It can be easily adjusted to suit different sizes of workpieces, making it versatile for various woodworking tasks.
Technical Specifications
| Technical Specifications | Metric |
|---|---|
|
N. of speeds back and forth |
4 |
|
Fixed speeds
|
4 – 8 -11 – 22 mt/min |
|
N. of wheels |
3 |
|
Wheel diameter and thickness |
120 x 60 mm |
|
Motor |
1 HP / 0,75 KW RPM 1400 /2800 |
|
Wheel suspension |
20 mm |
|
Distance between wheels |
133 mm – 153 mm |
|
Distance between first and last wheel
|
286 mm |
|
Overall dimensions and net weight of the feeding unit |
474 x 220 x 490 mm 30 Kg |
