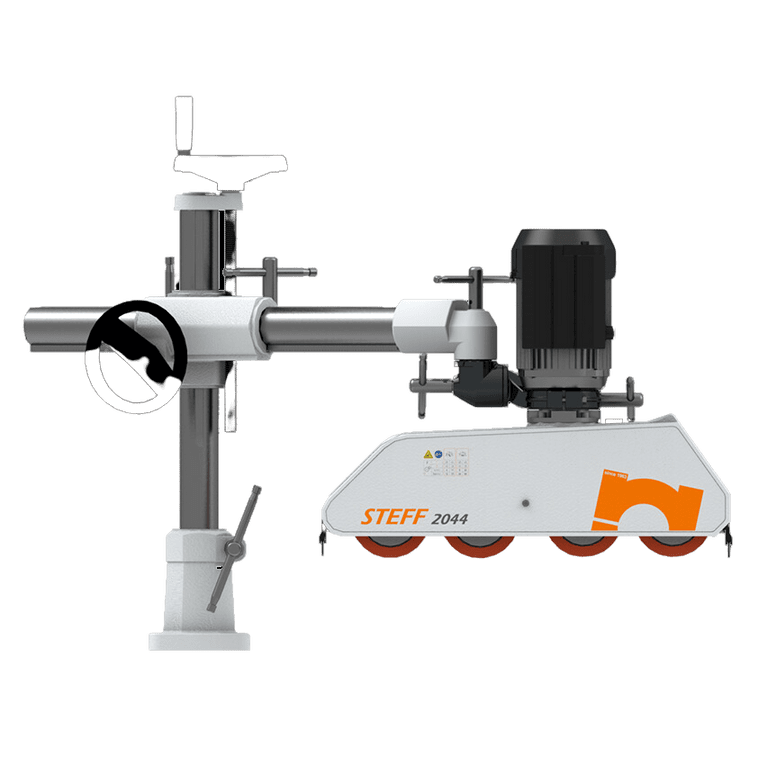

Maggi Steff 2044
The Maggi Steff 2044 Power Feeder is a professional power-feeding unit designed to enhance safety and efficiency in woodworking operations. It features four fixed speeds (4, 8, 11, and 22 meters per minute) to accommodate different working needs, ensuring a consistent and even feed-rate that improves the finish quality of your workpieces. The power feeder includes a safety device that prevents operators from having to place their hands close to the tool, reducing the risk of injury. Additionally, it is easily adjustable to suit different sizes of workpieces, making it versatile for various woodworking tasks.
- Crafted with precision
Product Features
Durability
Equipped with 50-Shore wheels made of patented “Feeder Grip” rubber, it provides long-lasting durability and a strong grip on the workpiece.
- Crafted with precision
Product Features
High Quality End Products
4-wheel model : the ideal solution for the feeding of laths and medium or small-size workpieces. Thanks to the two infeed-wheels and the third outfeed one, the workpiece is constantly and evenly fed through the working process, thus remarkably improving the quality of the end products.
- Crafted with precision
Product Features
Speed Selector
The speed selector allows a quick set-up of the 1st and the 2nd feedrate and the quick change of the feeding direction back and forth; while swapping the internal gears You obtain the 4 speeds.
- Innovation. Automation. Satisfaction.
Design Features
Built to last, the Maggi Steff 2034 Power Feeder is equipped with patented 50-Shore “Feeder Grip” rubber wheels, providing a strong grip and long-lasting durability. This power feeder not only improves the quality of your work but also ensures a safer and more efficient working environment, making it an invaluable addition to any workshop.
It offers four fixed speeds (4, 8, 11, and 22 meters per minute) to accommodate different working needs.
The unit ensures a constant and even feedrate, which improves the finish quality of the workpiece.
The power feeder includes a safety device that prevents operators from having to place their hands close to the tool, reducing the risk of injury.
It can be easily adjusted to suit different sizes of workpieces, making it versatile for various woodworking tasks.
Technical Specifications
| Technical Specifications | Metric |
|---|---|
|
N. of speeds back and forth |
4 |
|
Fixed speeds
|
4 – 8 -11 – 22 mt/min |
|
N. of wheels |
4 |
|
Wheel diameter and thickness |
120 x 60 mm |
|
Motor |
1 HP / 0,75 KW RPM 1400 /2800 |
|
Wheel suspension |
20 mm |
|
Distance between wheels |
133 mm – 143 mm – 153 mm |
|
Distance between first and last wheel
|
421 mm
|
|
Overall dimensions and net weight of the feeding unit |
615 x 220 x 490 mm 30 Kg |
