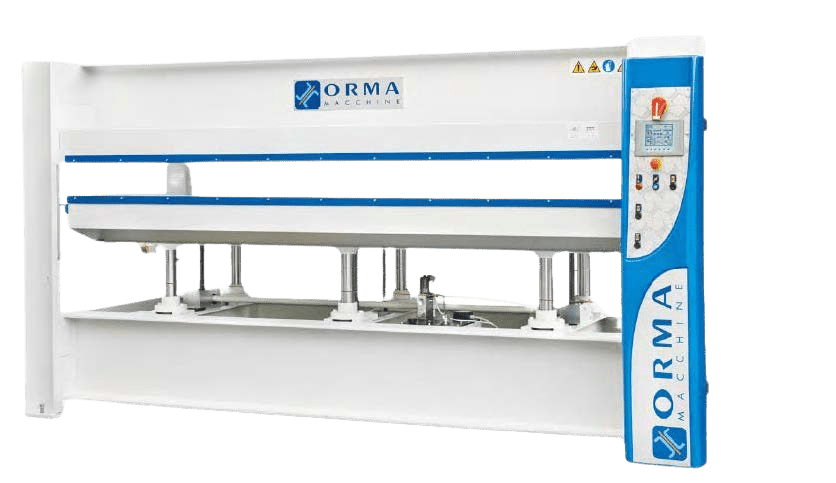

Orma NPC Hotpress 1300 x 1300 120T
The ORMA NPC HOT PRESS 1300X1300 12OT has been produced for more than 40 years. Orma have a wealth of knowledge and experience in the wood pressing field. These machines are worldwide known for their reliability and high technical performances.
- Crafted with precision
Product Features
Oil Inlet Temperature Control
Thermometer (shows oil inlet temperature). Stops the oil circulation pump only when the oil temperature reaches 100 °C, to dissipate remaining heat in the heater after burner stop, to prevent oil damage.
- Crafted with precision
Product Features

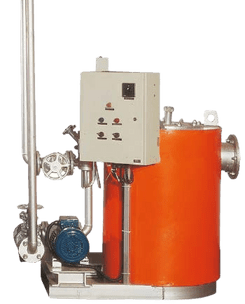

Electric Heater For Water
Composed of: Circulation pump, piping, expansion tank, max temperature: 120 °C A thermometer is fitted in the boiler with a double safety function in case of remote thermometer breakdown or irregular temperature inside the boiler. Piping insulation excluded.
- Crafted with precision
Product Features
Pistons
The pistons chroming is carried out by “thickness” to obtain enhanced durability of the chroming and ensuring smooth shaft sliding over extended periods Thrusting cylinders are made of steel for mechanical application and according to Orma machine design.
- Innovation. Automation. Satisfaction.
Design Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
The press is made of welded and precisionmachined beams, ensuring durability and reliability.
The control panel features a touchscreen display for easy adjustment of pressure, temperature, and pressing time.
It includes a double-stage hydraulic pump for efficient operation and a chrome-plated piston rod for extended lifespan.
Equipped with a safety emergency cable and
automatic pressure recovery device to
maintain consistent pressure.

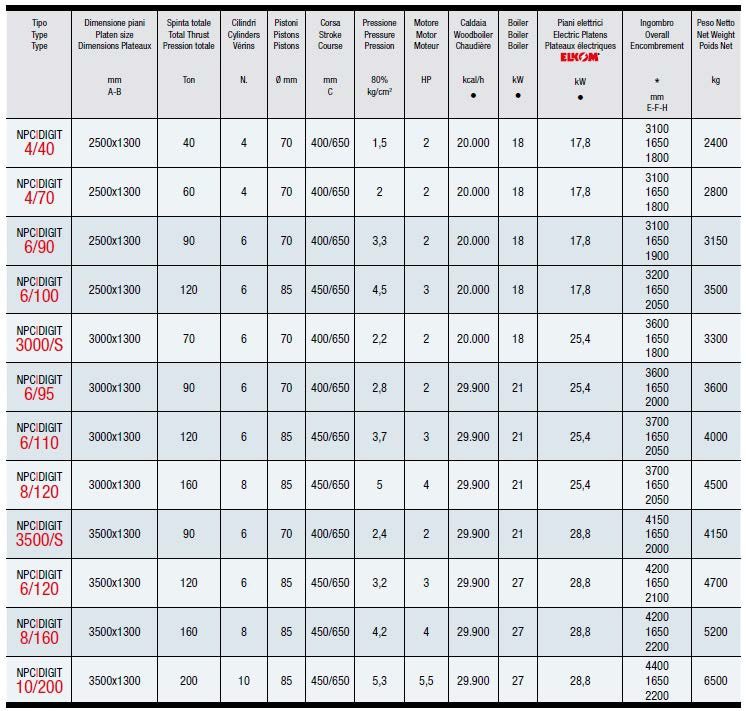

Technical Specifications

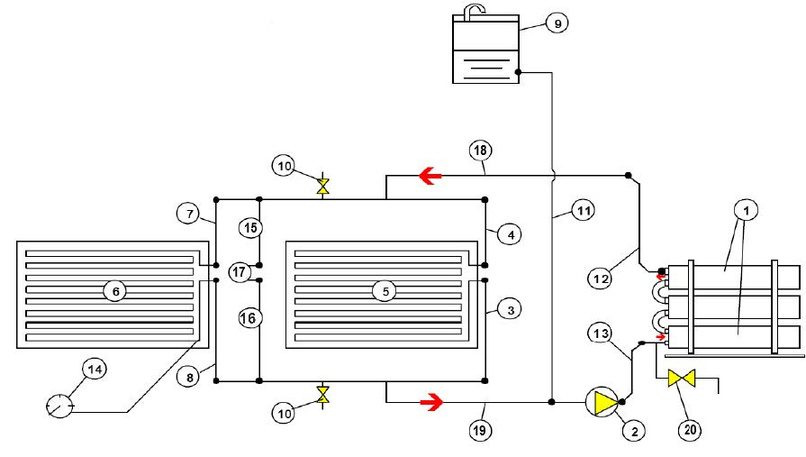

Electric boiler
Circulation pump
Flexible inox pipe – lower output
Flexible inox pipe – lower input
Press lower platen
Press upper platen
Flexible inox pipe – upper input
Flexible inox pipe – upper output
Expansion tank
Air bleed valve
Safety flexible inox pipe: water feeding and installation bleed
Flexible inox pipe: boiler–collectors connection
Flexible inox pipe: pump–boiler connection
Temperature adjustment telethermometer
Possible upper input flexible inox pipe for intermediate platen
Possible upper output flexible inox pipe for intermediate platen
Possible intermediate platen
Installation delivery hose
Installation return hose
Valve for fluid bleed from installation
