P3200
Designed for strength, precision, and smooth operation, the machine features a closed ring base structure that ensures maximum stability under pressure, a rack and pinion saw carriage system for quiet and consistent cutting, and a magnetic band system for accurate, real-time positioning of the pusher carriage.
- Crafted with precision
Product Features

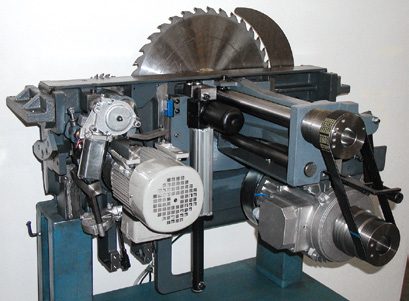

Sawing unit with long shaft
The sawing unit with a long shaft slides vertically along prismatic guides. Stability and lack of vibration are ensured by the considerable distance between the bearings of the long shaft.
- Crafted with precision
Product Features

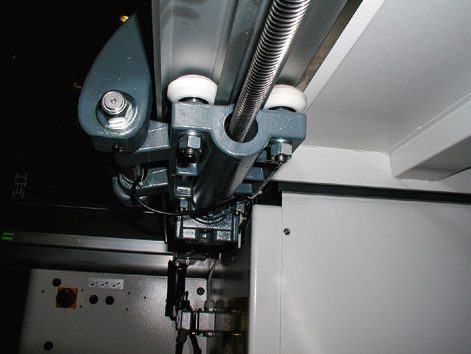

Excellent cutting finish and quality
The carriage sliding system, with large diameter bearings that roll along hardened and ground prismatic tracks, together with mechanical machining operations carried out on numerically controlled machines, mean stability, no vibration, excellent sliding and straight cutting.
- Crafted with precision
Product Features

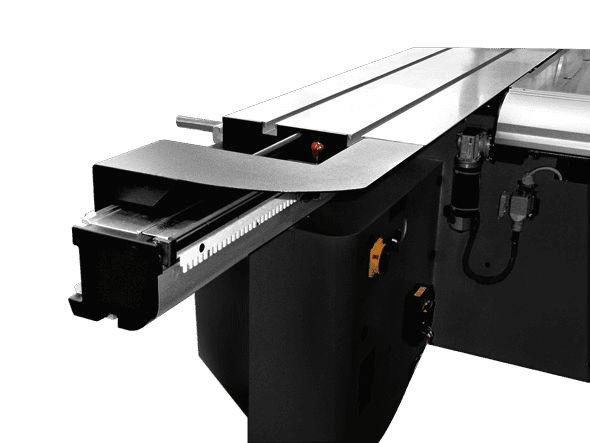

Carriage lock
The carriage has a lock which can be inserted in any position making loading of the pieces to be machined even safer.
- Innovation. Automation. Satisfaction.
Design Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
High performance machining centre incorporating italian technology.
Emergency mushroom buttons placed at the entrance and exit of the machine.
The machine management is ensured by an operator panel with a 7″ colour touchscreen fitted in a handy position.
Technical Specifications
| Technical Specifications | Metric |
|---|---|
|
Length |
10 – 45 mm. (10-60mm optional 15) |
|
Depth |
7,0 mt/min ( 9,0 mt/min optional 100 ) |
|
Height |
15 – 65 mm |
|
Weight
|
0,4 – 3,0 mm |
|
Panel Thickness
|
1,00 Kg |
|
Minimum Panel Width |
230/400 V 50/60 Hz. – 3 Ph+N |
|
Minimum Panel Length |
140 mm. (PVC) |
|
Edge Width |
80 mm |
|
Edge Thickness |
6 bar |
|
Dimensions of machine |
1000 Kg |
|
Pneumatic Power |
3700 mm |
|
Power Supply
|
Min. 15 °C / Max. 45 °C (Min. 59 °F / Max: 113 °F) |
|
|
400V-415V 3P N 50Hz |
