P45
The P45 is a precision-engineered format circular saw with a tilting blade, designed for exceptional accuracy, stability, and ease of use. Built with durable materials and refined with high-performance components, it delivers smooth, clean cuts even on demanding jobs. Its robust construction, advanced guiding system, and user-friendly features make it an ideal solution for professional panel processing.
- Crafted with precision
Product Features

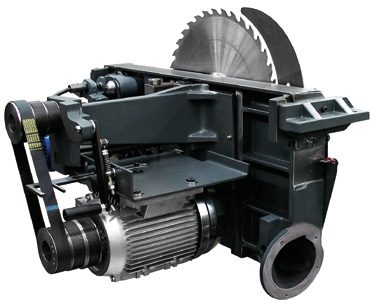

Saw unit with long shaft
The saw blade unit, with a long shaft, runs vertically along prismatic slides. Stability and lack of vibration are ensured by the considerable distance between the bearings and the long shaft.
- Crafted with precision
Product Features
Excellent quality and cutting finish
The sliding system adopted on the new carriage, with large diameter bearings that roll along tempered and ground prismatic tracks, provides excellent smoothness and ± 0.05 mm straight cutting along the whole carriage stroke.
- Crafted with precision
Product Features
Speed change
The speed change is very quick and easy because it can be simply executed through an opening that is above the working table.
- Innovation. Automation. Satisfaction.
Design Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.

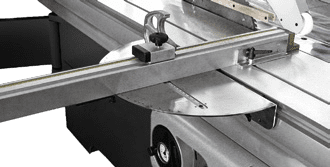

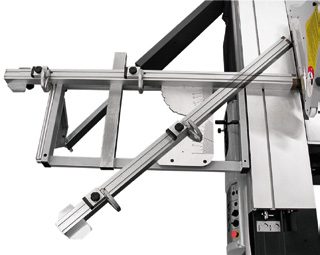

Carriage in anodized aluminium alloy running on adjustable, high precision tempered and hardened steel guide.
The carriage has a lock which can be inserted in any position, making loading of the pieces to be machined even safer.
Horizontal and vertical adjustment of the scoring saw is manual, with rapid movement and locking in any saw position, vertical or angled.
Raising the saw blade is motorised, while tilting is manual via a front handwheel and gravitational readout.
Technical Specifications
| Technical Specifications | Metric |
|---|---|
|
Length |
10 – 45 mm. (10-60mm optional 15) |
|
Depth |
7,0 mt/min ( 9,0 mt/min optional 100 ) |
|
Height |
15 – 65 mm |
|
Weight
|
0,4 – 3,0 mm |
|
Panel Thickness
|
1,00 Kg |
|
Minimum Panel Width |
230/400 V 50/60 Hz. – 3 Ph+N |
|
Minimum Panel Length |
140 mm. (PVC) |
|
Edge Width |
80 mm |
|
Edge Thickness |
6 bar |
|
Dimensions of machine |
1000 Kg |
|
Pneumatic Power |
3700 mm |
|
Power Supply
|
Min. 15 °C / Max. 45 °C (Min. 59 °F / Max: 113 °F) |
|
|
400V-415V 3P N 50Hz |
