Putsch Meniconi SVP 145 Panel Saw
SVP 145 AUTOMATIC Putsch® Meniconi panel saw has as standard equipment the automatic movement of the beam and the carriage to perform every horizontal and vertical cutting with adjustable feeding speed by inverter from 10 to 24 mts/1’.
This panel saw has the possibility to select the stop of the blade carriage Putsch® Meniconi at the end of the cycle or return to the initial point. SVP 145 AUTOMATIC is equipped with sliding frame for narrow pieces, flippable device to lay small pieces, self-breaking motor and automatic device with retractable wheels to easy the cutting of PVC panels, Plexiglass panels and plastic materials panels.
- Crafted with precision
Product Features

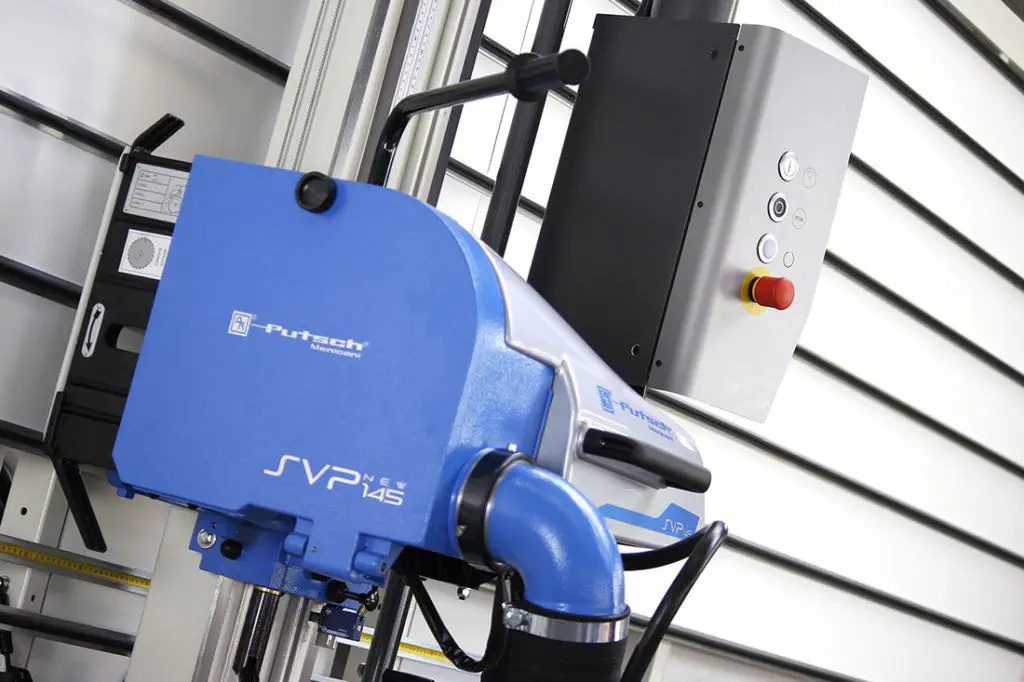

Renewed Carter
New protective cover for better control and protection.
- Crafted with precision
Product Features
Dust Catcher
The speed selector allows a quick set-up of the 1st and the 2nd feed rate and the quick change of the feeding direction back and forth; while swapping the internal gears You obtain the 4 speeds.
- Crafted with precision
Product Features
Angle Cutting Device
The Angle Cutting Device on the Putsch Meniconi SVP145 wall saw allows you to precisely incline the panel to be cut. This feature is particularly useful for making angled cuts or bevels, which can be essential for certain types of projects that require non-standard angles.
- Innovation. Automation. Satisfaction.
Design Features
SVP 145 AUTOMATIC is ideal to cut wood, plywood, phaesite, masonite, ledorex, listellar, multilayer, OSB, laminated, hard wood, chipboard, acrylic, forex, HPL, plastic laminates, lexan, makrolon, metacrylate, plexiglass, polycarbonate, PVC, plasterboard, Corian®, insulated panels, Trespa® and polyuretane.
The Putsch occupies significantly less space than other traditional panel saws.
The Putsch only requires one operator to cut any panel, unlike traditional sliding tables which require two people to operate.

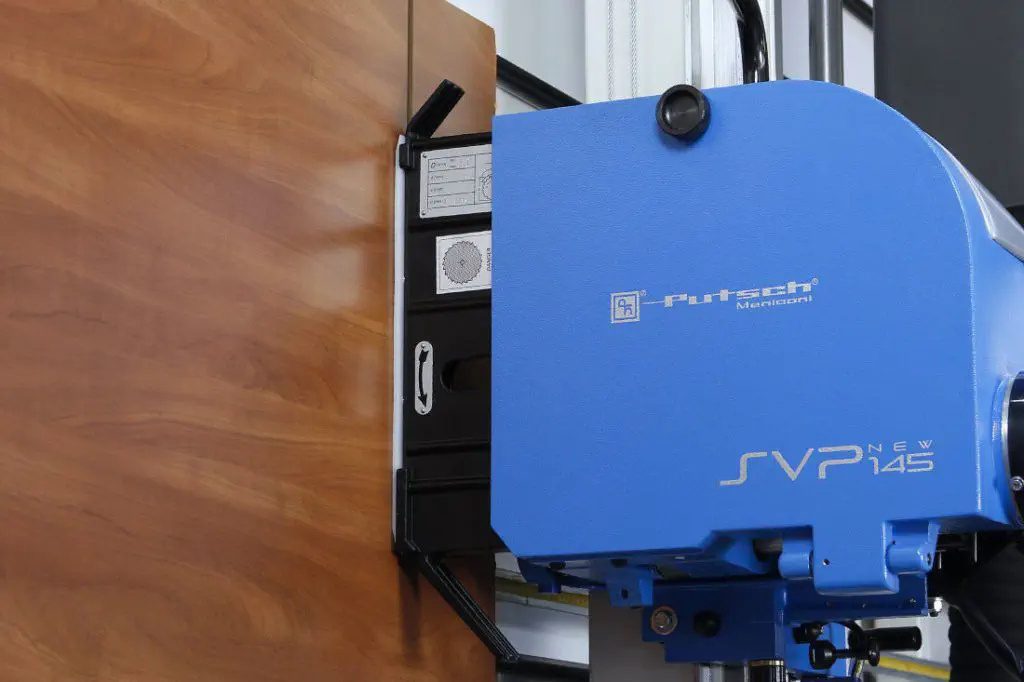

The vertical panel saws blade remains covered
and avoids any direct contact with the user in
every phase of operation, reducing risk of
injury
Unmatched precision compared to taditional sliding tables with tolerances of only 0.1mm per metre, and without manually sliding the workpiece, you ensure a scratchless finish.
Technical Specifications
| Technical Specifications | Metric |
|---|---|
|
Motor Output |
5 HP |
|
Blade Diameter |
250 mm |
|
Blade RPM (Min)
|
5300 |
|
Max Horizontal Cut Length |
4200 mm
|
|
Max Horizontal Cut Height |
2080 mm |
|
Max Vertical Cut Height
|
2200 mm |
|
Max Depth of Cut
|
60 mm |
|
Scoring Blade Diameter
|
70 mm |
|
Weight
|
450 Kg |
