T113
The spindle moulders, with a fixed or tilting shaft, guarantee perfect profiling with the best accessibility for the speed changes, rapid adjustment and extreme precision, thereby eliminating the trial runs of all types of woodworking.
- Crafted with precision
Product Features

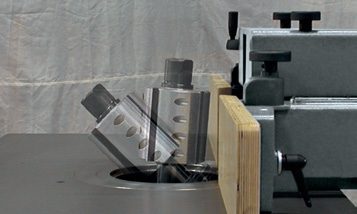

Tilting Spindle With Range +45° - 45°
Tilting spindle with range +45° -45° (for TX version) with gravitational display for the tilting and displacement through handwheel.
- Crafted with precision
Product Features

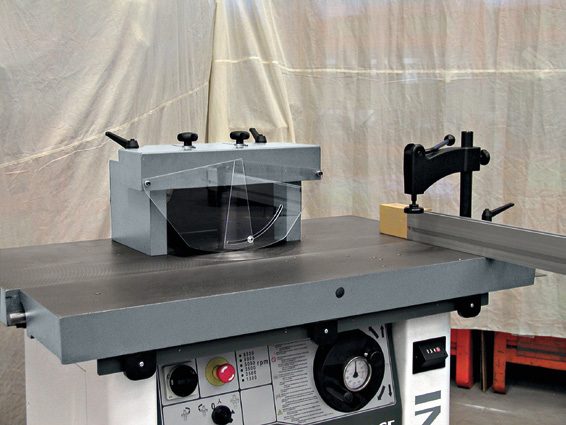

Precision Fence with Mechanical Displacement
Spindle moulder fence with mechanical displacement with readouts indicating the right position either of the fence or of the infeed table in comparison with the tool, with a decimal precision eliminating the necessity of trial machinings after the tool change.
- Crafted with precision
Product Features
Equipped With Independent Motorized Spindle
All machines are equipped with independent motorized spindle rise and fall and the adjustment controls are made through a membrane keypad.
- Innovation. Automation. Satisfaction.
Design Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
The electrical box controls are oriented towards the operator.

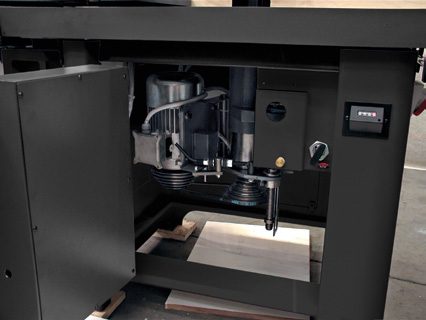

The machine is equipped with a big front door that allows the best accessibility for the speed change.
Technical Specifications
| Technical Specifications | Metric |
|---|---|
|
Length |
10 – 45 mm. (10-60mm optional 15) |
|
Depth |
7,0 mt/min ( 9,0 mt/min optional 100 ) |
|
Height |
15 – 65 mm |
|
Weight
|
0,4 – 3,0 mm |
|
Panel Thickness
|
1,00 Kg |
|
Minimum Panel Width |
230/400 V 50/60 Hz. – 3 Ph+N |
|
Minimum Panel Length |
140 mm. (PVC) |
|
Edge Width |
80 mm |
|
Edge Thickness |
6 bar |
|
Dimensions of machine |
1000 Kg |
|
Pneumatic Power |
3700 mm |
|
Power Supply
|
Min. 15 °C / Max. 45 °C (Min. 59 °F / Max: 113 °F) |
|
|
400V-415V 3P N 50Hz |
