Titan
The Titan 5 Axis CNC is a high-quality CNC machining centre with 5 controlled axes, equipped with a matrix table adapted to a variety of flexible working processes such as quick nesting, drilling, grooving, and milling functions. The Titan 5 Axis CNC comes in multiple sizes to meet any work size requirements.
- Crafted with precision
Product Features

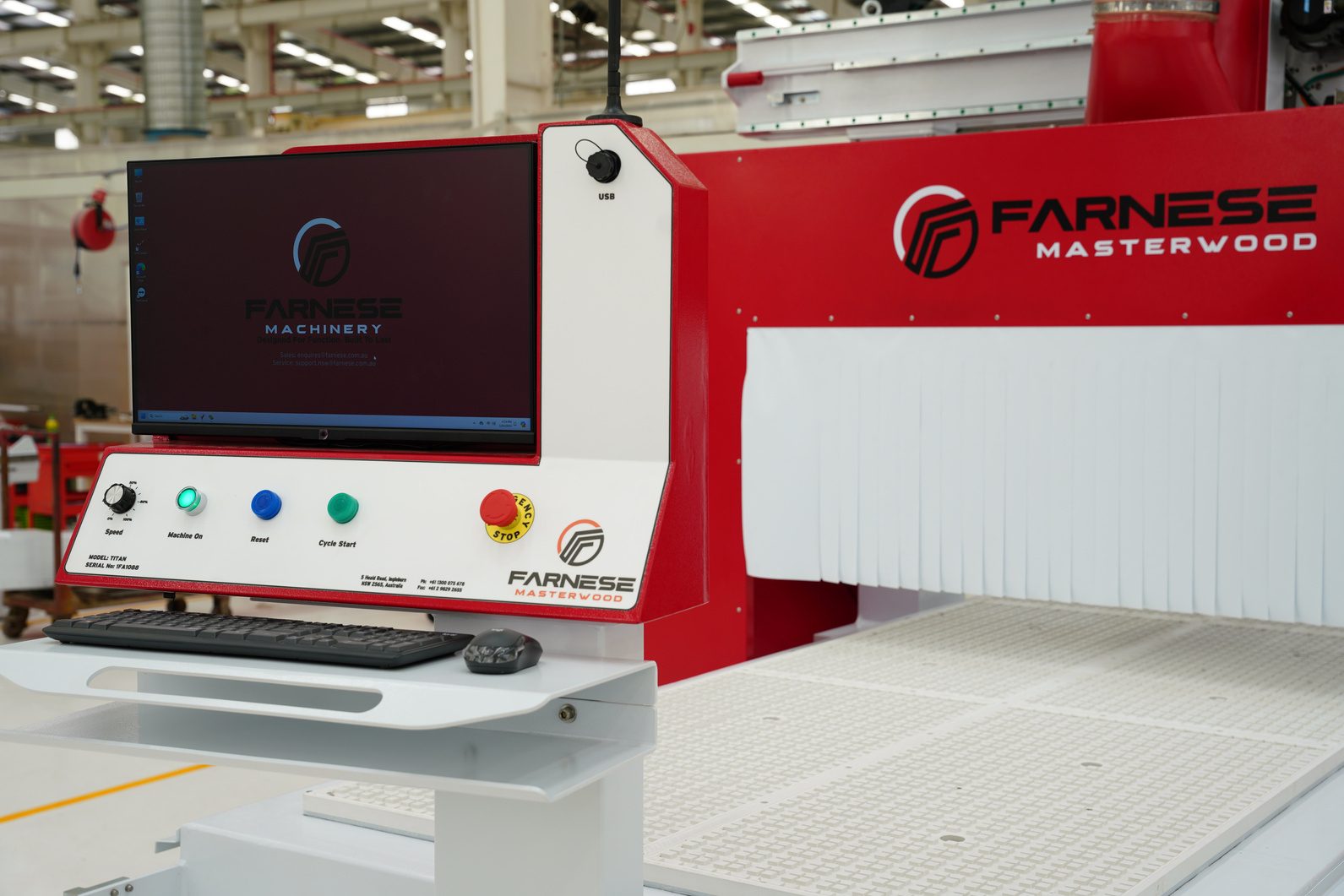

Osai CNC Control
High quality reliable Italian controller. Easy to customise interface and fitted with internet remote assistance for ease of support.
- Crafted with precision
Product Features

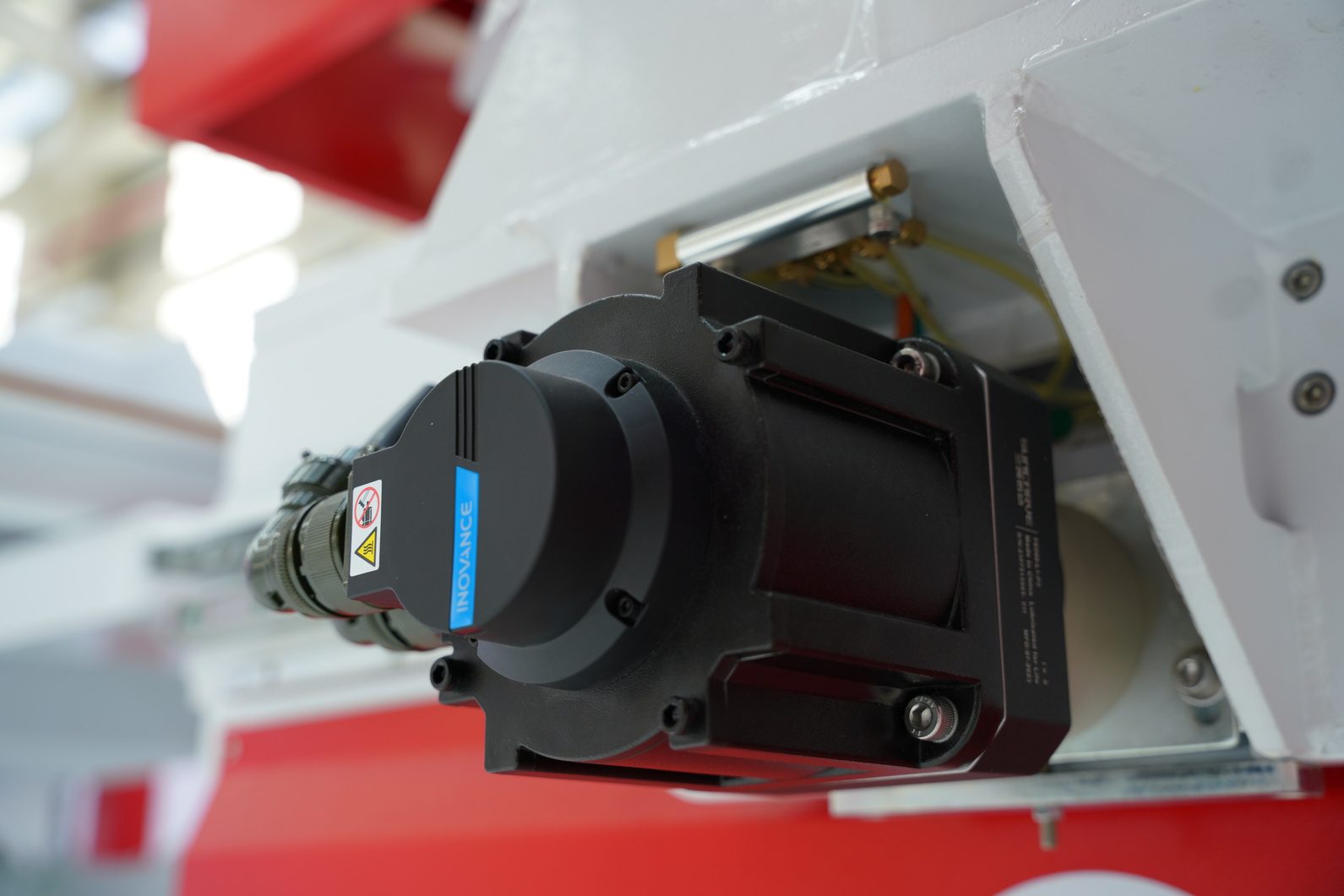

High Precision Drivers
High precision absolute encoder servo motors with high precision gearboxes for high speed and positional precision.
- Crafted with precision
Product Features
Motorised Up & Down
The machine features motorized adjustments for both the main saw and scoring saw, along with electrical tilting and an electrical cam seat. It supports a maximum saw blade size of 400mm and offers a maximum cutting height of 125mm. Additionally, it includes a double scoring saw blade for enhanced precision.
- Innovation. Automation. Satisfaction.
Design Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
High performance machining centre incorporating italian technology.
Heavy duty machine frame with high accuracy ensures long lasting and stable running
Open software docking, and perfectly compatible with the diversified cv data format.
Easy to learn and operate with rapid routing, drilling, and grooving.
Widely used in the kitchen, furniture, sign writing, plastics, boat building, and aluminium industries.
Technical Specifications
| Technical Specifications | Metric |
|---|---|
|
Maximum work size |
1220x2800mm, 1220x3600mm, 1800x3600mm |
|

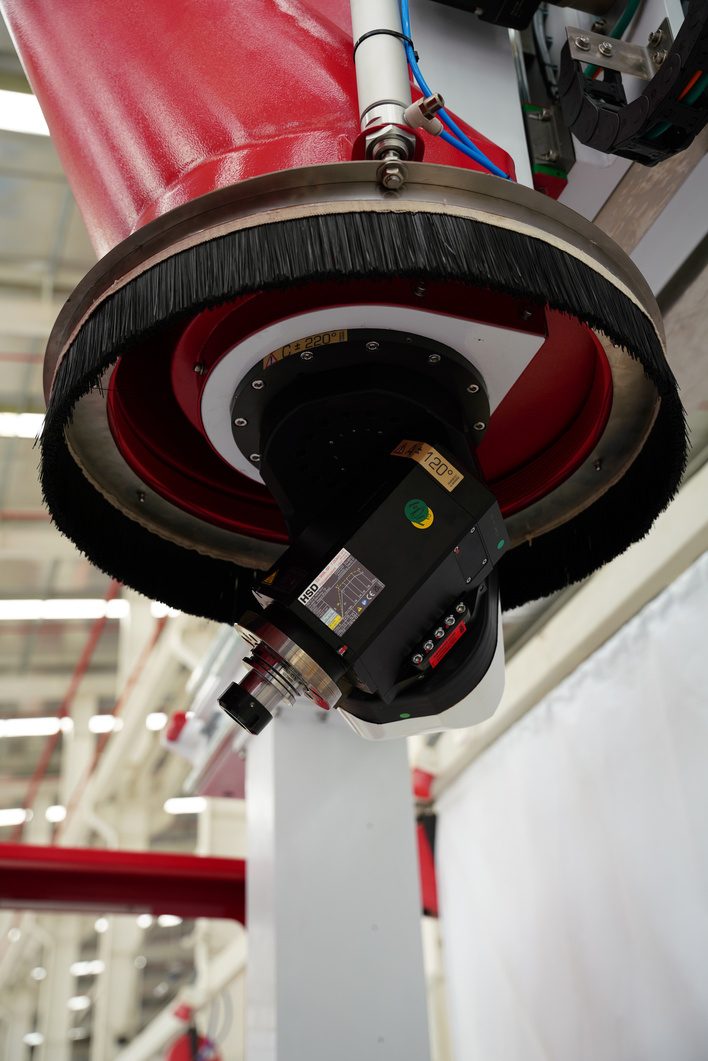

Spindle Power |
6.5kW 40,000RPM
|
|
Spindle Max RPM |
40,000 |
|
Drill bank |
9 drills (optional) |
|
Z axis stroke |
300mm |
|
Vacuum zones
|
8 |
|
Dust hood connection |
250mm |
|
Weight |
Approx 4,000kg |
|
Max X-Y Travel Speed |
76 m/minute |
|

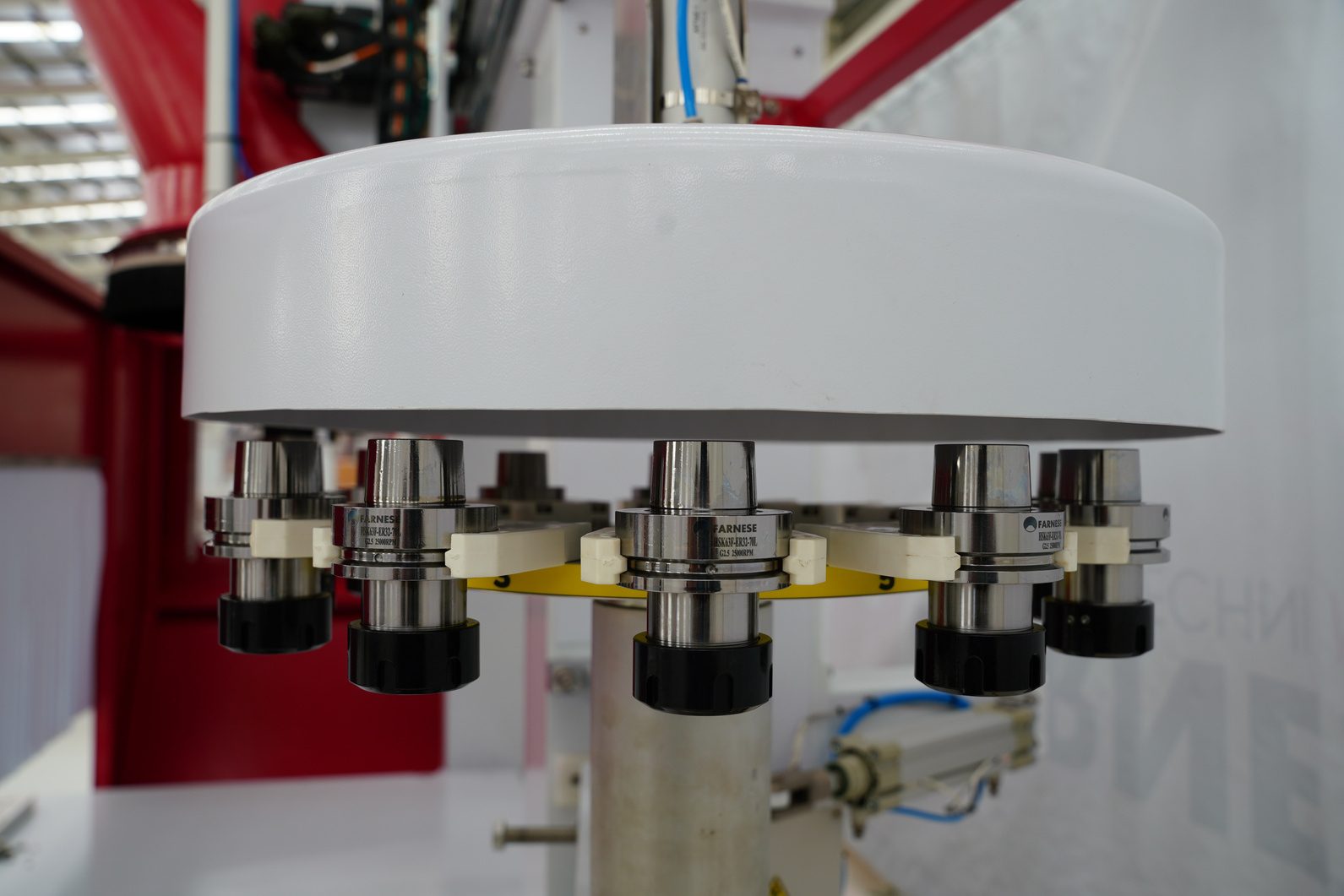

12 position rotary tool changer
|
|
|
Osai controller |
|
|
Hiwin linear rails |
|
|
Digital Inovance servo system |
|
|
Delta spindle inverter |
|
|
Vacuum pump |
2x250m3/h
|
|
Voltage |
415V, 50Hz, 3 phase plus neutral |
