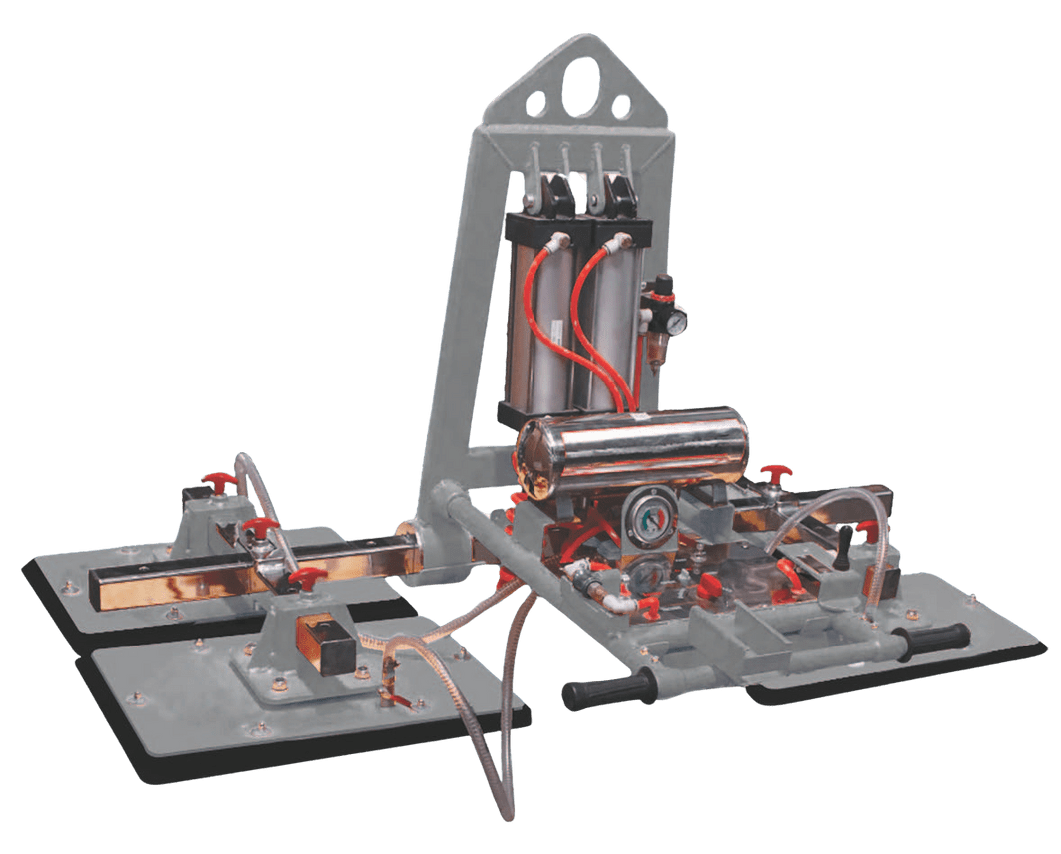

Vacuum Lifter 4P
4 PAD
With four vacuum pads, the lifter ensures a secure grip on materials, distributing the load evenly to prevent damage and enhance stability. The Farnese 4 Pad Lifter can handle loads up to 1000 kg, making it ideal for lifting and transporting heavy materials safely and efficiently.
- Crafted with precision
Product Features
Tiltable From 0 To 90°
The lifter’s tiltable design, adjustable from 0 to 90°, allows for easy positioning and placement of loads, increasing its versatility for various tasks.
- Crafted with precision
Product Features

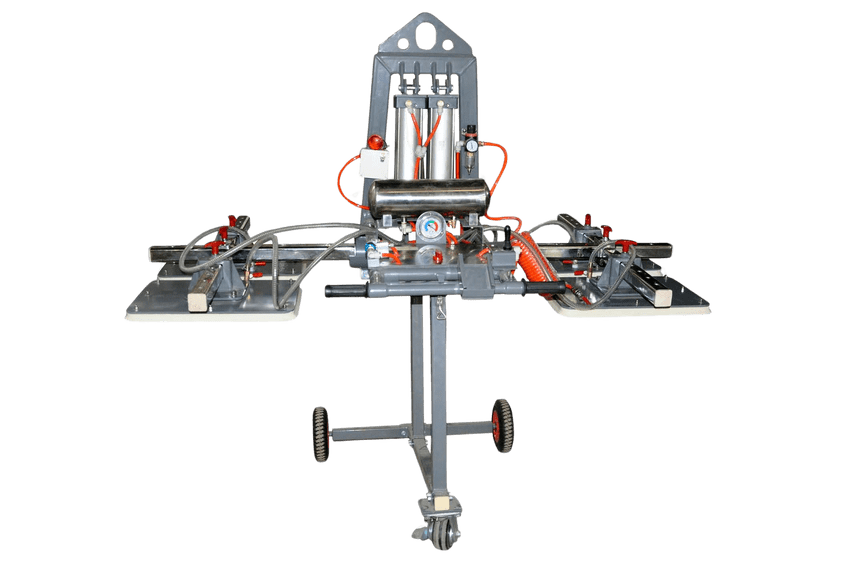

Trolley Included For Easy Maneuvering
The included trolley makes maneuvering and transporting materials effortless, reducing physical strain and improving workplace efficiency.
- Crafted with precision
Product Features
1000 Kg Working Load Limit
The Farnese 4 Pad Lifter can handle loads up to 1000 kg, making it ideal for lifting and transporting heavy materials safely and efficiently.
- Innovation. Automation. Satisfaction.
Design Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
The lifter’s tiltable design, adjustable from 0 to 90°, allows for easy positioning and placement of loads, increasing its versatility for various tasks.
The Farnese 4 Pad Lifter can handle loads up to 1000 kg, making it ideal for lifting and transporting heavy materials safely and efficiently
The included trolley makes maneuvering and
transporting materials effortless, reducing
physical strain and improving workplace
efficiency.
With four vacuum pads, the lifter ensures a
secure grip on materials, distributing the load
evenly to prevent damage and enhance
stability.
Technical Specifications
| Dimensions of Installed Machine | Metric | Imperial |
|---|---|---|
|
Length |
1820 mm |
71.7 in |
|
Width |
1200 mm |
47.2 in |
|
Height |
1581 mm |
62.2 in |
|
Weight |
120 kg |
264 lb |
|
Load (Working Load Limit) |
1000 kg |
2204 lb |
|
Minimum Slab Size
|
1320 mm x 720 mm |
52 in x 28.3 in |
|
|
||
|
Equipment Ranges |
||
|
Air Pressure (Working) |
(-0.8) – (-0.5) bar |
(-11.6) – (-7.25) psi |
|
Air Pressure (Consumption) |
915.5 l/min |
201.9 gpm |
|
Acoustic Alarm |
YES
|
YES
|
|
Vacuum Gauge
|
YES |
YES |
|
Vacuum Generator |
YES |
YES |
|
Vacuum Pads
|
4 |
4 |
|
Tiltable Pads |
0 – 90°
|
0 – 90° |
*Owing to the constant updating of our designs, descriptions and technical data shown in our drawings and folders are not binding. Possible alterations deemed by the makers as convenient will be effected at any time without previous notice.
