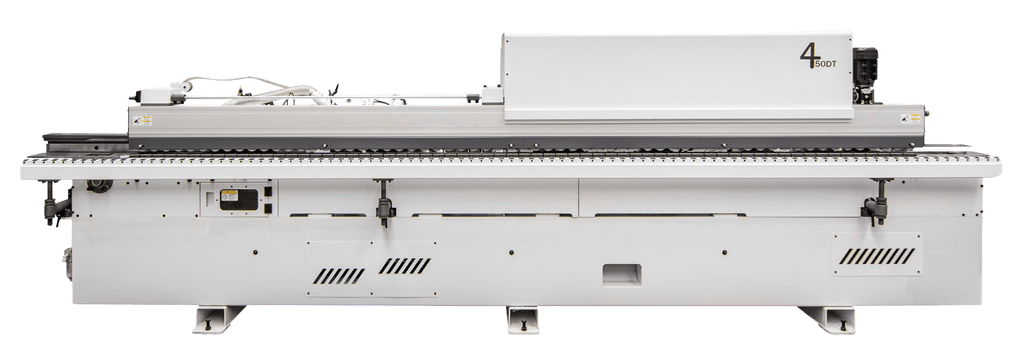

FM45 Edgebander
The Farnese FM45 Edgebander is a compact and sturdy machine ideal for industrial or artisan use. It features a quick-heating glue pot for efficient application of PVC and veneer edges, and it can create doors and drawers in-house with bevel, finger pull, and shark nose profiles. The units are adjusted automatically with a pressure bar provided with a double row of wheels.
- Crafted with precision
Product Features

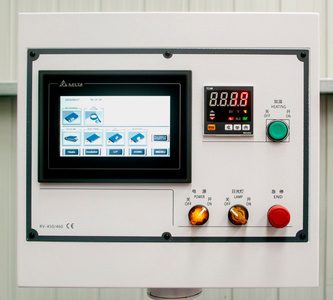

Control Panel
The management of the machine and its working units is performed by an electronic control PLC. On the screen the following data are displayed: Feed rate, glue tank temperature, program type selected by the operator, integrated simple and controlled diagnostic.
- Crafted with precision
Product Features

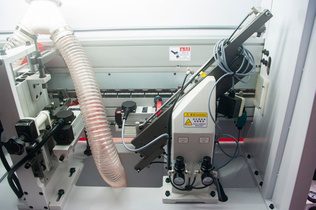

End Trimming Unit
Adopt air pressure balance device to make the head more stable and easy to adjust. The pneumatic design is optimised to reduce the noise and improve the efficiency of the cutting equipment.
- Crafted with precision
Product Features

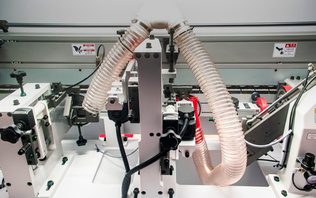

Heavy Duty Trimming Unit
The stable frame design is adopted to reduce the instability of trimming quality caused by the jitter of the tool during high speed cutting.
- Innovation. Automation. Satisfaction.
Design Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
45° cutting with double blade system.
EVA, Adopt Teflon spray technology, and scientific glue back design.
Pneumatic design with two wheels adjustable makes pressing adjustment easier. Can be adjusted according to the thickness of the edge tape.
All motors turn at 12,000 RPM and are controlled by an inverter of suitable power according to machine configuration.
Technical Specifications
| Technical Specifications | Metric |
|---|---|
|
Length
|
4980mm |
|
Depth |
980mm |
|
Height |
1600mm |
|
Weight |
1500KG |
|
Standard Panel Thickness |
9 to 25mm |
|
Panel Width |
60mm |
|
Panel Length
|
Min 120mm |
|
Edge Width |
12 to 48 mm |
|
Edge Thickness |
0.6 – 2mm |
|
|
Veneer 0.3 – 0.6 mm |
|
Feed
|
13m/ min |
|
Working Air Pressure |
6.5KG |
|
Total Power Required
|
415V (+/-5%) |
|
Connections Required (Supplied By Customer) Power, Compressed Air |
|
