Junior 640 Radial Arm Saw

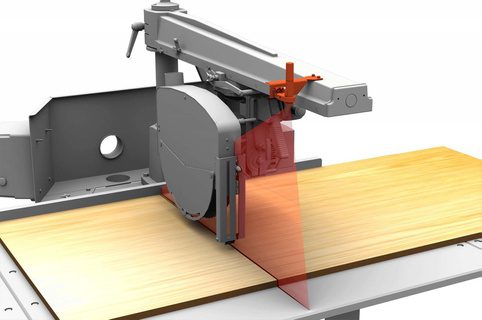

The RADIAL ARM SAWS JUNIOR 640 by Maggi Technology is a versatile and precise cutting machine designed for woodworking tasks1. It features a manual radial-arm design, allowing for straight (90°) crosscuts, miter cuts (45° left and right), and bevel cuts (45° left and right)2. This saw is ideal for furniture manufacturing and joinery, offering a small footprint suitable for small workshops.
- Crafted with precision
Product Features
Versatile
Swivelling arm up to 45° left and right and left tilting cutting-head (stop and lock at 45°) allow many different cutting operations for the greatest versatility. The cuttinghead can also turn by 90° for accurate ripping.
- Crafted with precision
Product Features
Safe
Sound-insulated, full-cover blade guard with safety microswitch, anti kickback, well-dimensioned working bench, emergency button and push-sticks definitively contribute to the operator safety during the cutting process.
- Crafted with precision
Product Features
Solid And Accurate
Rugged steel construction, arm and base made of cast iron. Interchangeable, tempered-steel made guides. Cutting head sliding on 8 ball bearings for a smooth, precise and effortless carriage movement.
- Innovation. Automation. Satisfaction.
Design Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
Designed with a small footprint, making it an ideal choice for workshops with limited space. Despite its compact size, it doesn’t compromise on functionality or performance.
The cutting unit moves manually along the
arm on guides and ball bearings, with a return
spring aid and a mechanical locking system at
45° left.
Ensuring even those with minimal experience
can operate it effectively. Its intuitive controls
and straightforward setup make it easy to use,
allowing for quick adjustments and precise
cuts.
Comes equipped with a feature that allows it to be seamlessly connected to a dust collector. This integration is crucial for maintaining a clean and safe working environment, as it effectively captures and removes the dust generated during cutting operations.
Technical Specifications
| Dimensions of Installed Machine | Metric |
|---|---|
|

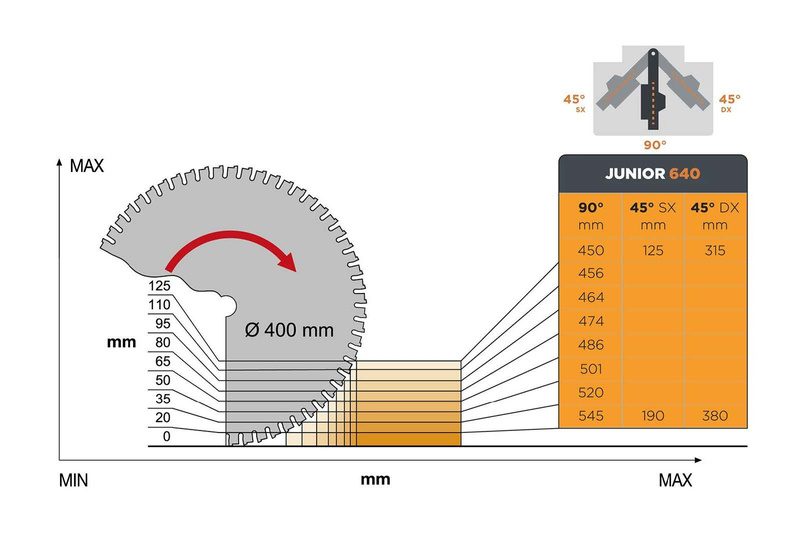

Max. cutting height |
125 mm |
|
Max. cutting width |
545 x 20 h mm |
|
Min. cutting width |
450 x 125 h mm |
|
Max. length of workpiece |
infinito |
|
Max. cutting width for ripping |
0 – 860 mm |
|
Cutting height at 45 °
|
0 – 80 mm |
|
Min. and Max. cutting width at 45° (right) |
315 – 380 mm |
|
Min. and Max. cutting width at 45° (left) |
125 – 190 mm |
|
Height of blade from working bench
|
0 – 45 mm |
|
Blade diameter |
400 mm |
|
Blade bore diameter |
30 mm |
|
Motor |
HP / KW 4/3 RPM 2800 |
|
Working bench dimensions
|
1690 x 1155 mm |
|
Diameter of dust collection nozzle on blade guard |
60 mm |
|
Diameter of dust collection nozzle on rear hood
|
100 mm ( n.2) |
|
Overall dimensions of full-assembled machine and net weight |
1690 x 1560 x h 1580 mm / 220 Kg |
|
Dimensions of packed machine and gross weight
|
1420 x 850 x h 750 mm – 232 Kg
|
|
Dimensions and gross weight – HALF ASSEMBLED MACHINE |
1380 X 920 X h 960 mm – 246 Kg |
