Maggi Boring System 46

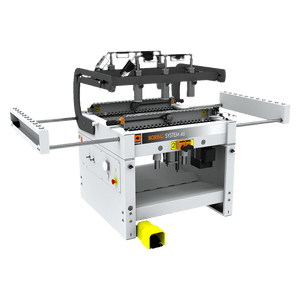

The BORING SYSTEM 46 by Maggi Technology is a semi-automatic, multispindle boring machine designed for high productivity in woodworking. It features two parallel vertical boring heads, each with 23 spindles, allowing for vertical double-row line drilling on furniture sides. This system is ideal for bookcase, bookshelf, and wardrobe manufacturers.
- Crafted with precision
Product Features
High Productivity
Having a total interaxes of 704 mm and with two boring-heads, the machine can perform a double row of parallel line holes in just one working cycle, and process a 3000 mm long side-panel in just four working cycles.
- Crafted with precision
Product Features
Effective Panel Hold-Down And Drilling Accuracy

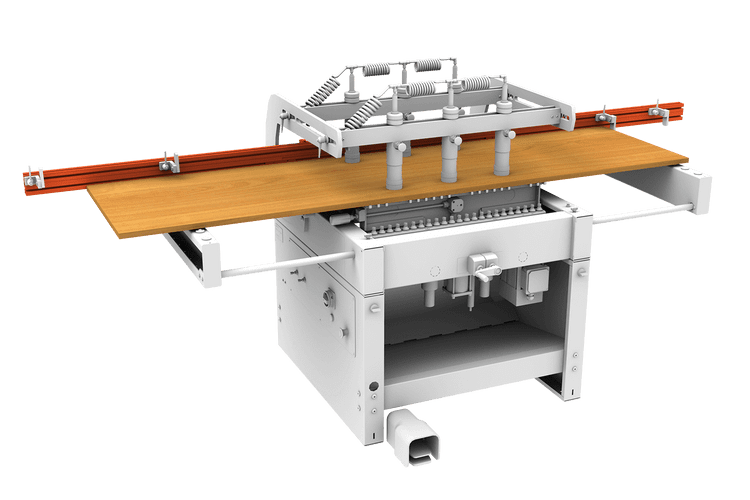

N. 6 quick-adjustable, pneumatic, safety clamps ensure the perfect panel hold-down, which results into always accurate drilling operations.
- Crafted with precision
Product Features
Fast And Effective
It considerably speeds up the vertical row drilling operations with respect to a single-head boring machine.
- Innovation. Automation. Satisfaction.
Design Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
Boring depth and distance between the heads are easily adjustable with numeric counters.
Enhance efficiency and reduce downtime.
Having a total interaxes of 704 mm and with two boring-heads, the machine can perform a double row of parallel line holes in just one working cycle, and process a 3000 mm long side-panel in just four working cycles.
Six quick-adjustable, pneumatic safety clamps
ensure accurate drilling operations.
Technical Specifications
| Technical Specifications | Metric |
|---|---|
|
Spindles |
N 23 + 23 |
|
Left and right spindles on each head |
N. 11 left – N. 12 right |
|
Spindle interaxis
|
32 mm |
|
Total interaxis |
704 mm |
|
Distance between rear head ( head n°1) and rear fence |
Min 15 mm – max 494 mm |
|
Distance between front head ( head n°2) and rear fence
|
Min 160 mm – max 639 mm |
|
Max. tool diameter |
40 mm |
|
Max. boring depth
|
55 mm |
|
Height of the working table
|
875 mm |
|
Max. panel thickness |
50 mm |
|
Max. panel dimensions
|
700 x 3000mm |
|
N. 2 motors
|
HP 2 / KW 1,5 – RPM 2800 |
|
Standard pneumatic pressure
|
BAR 6/ 8 |
|
Air consumption
|
NL 20 / cycle |
|
Dust-collection hood diam.
|
80 mm |
|
Overall dimensions
|
“1150 x 1130 x 1290 mm 2180 x 1130 x 1290 mm incl. extendable side roller tables |
|
Net weight |
370 kg |
|
Package dimensions ( machine) |
1070 x 1220 x 1120mm |
|
Fence package dimensions |
1000 x 80 x 40 mm (each fence) packed in two separate cartons and inside the wooden crate |
|
Total gross weight
|
410 KG |
