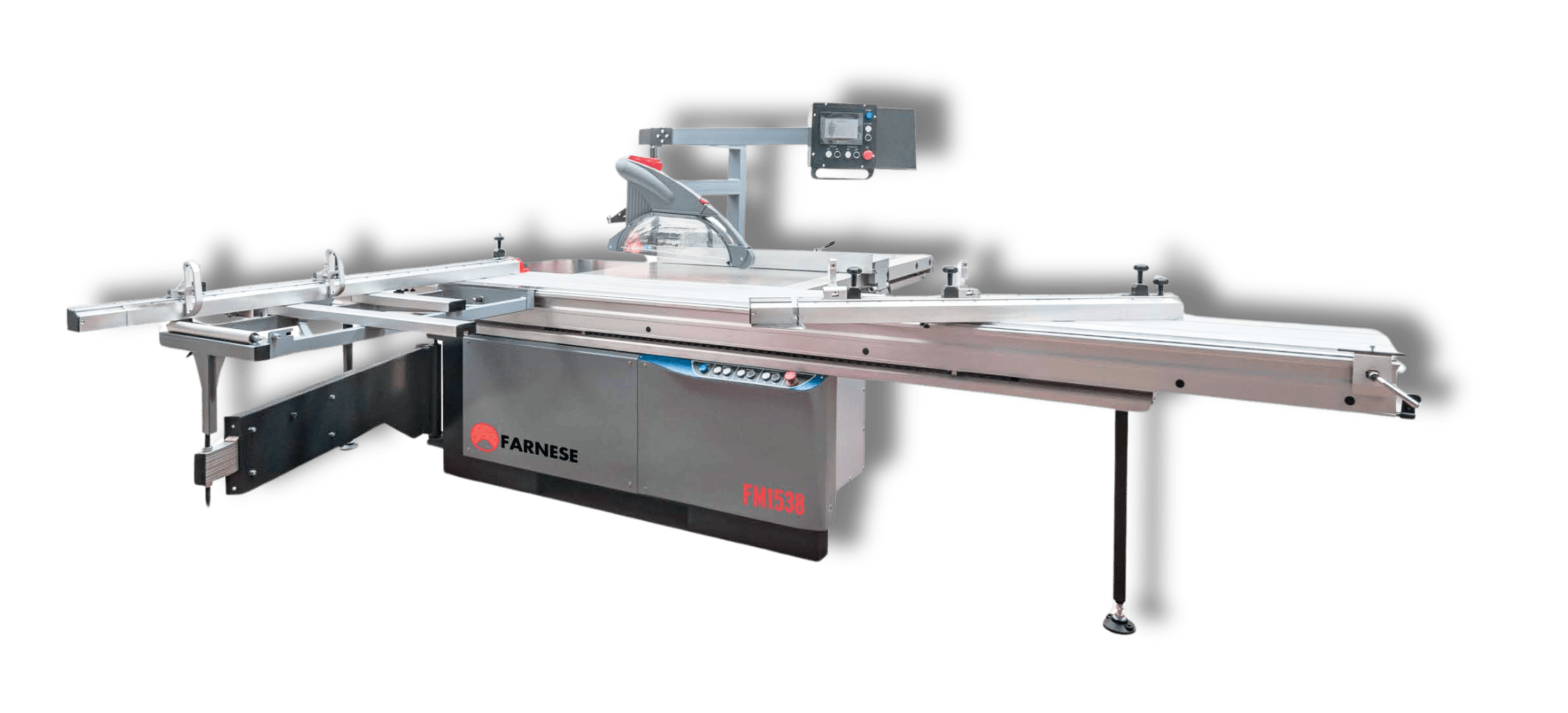

S Nova-8
The Farnese Masterwood Australia saw machine boasts advanced features such as motorized adjustments for the main and scoring saws, electrical tilting, and a cam seat. It supports a maximum saw blade of 400mm and a cutting height of 125mm, with double scoring saw blades for precision. The table structure, processed with German technology, includes a maintenancefree sliding table and a high-precision, wear-resistant multi-cavity structure
- Crafted with precision
Product Features
Motorised Up & Down
The machine features motorized adjustments for both the main saw and scoring saw, along with electrical tilting and an electrical cam seat. It supports a maximum saw blade size of 400mm and offers a maximum cutting height of 125mm. Additionally, it includes a double scoring saw blade for enhanced precision.
- Crafted with precision
Product Features

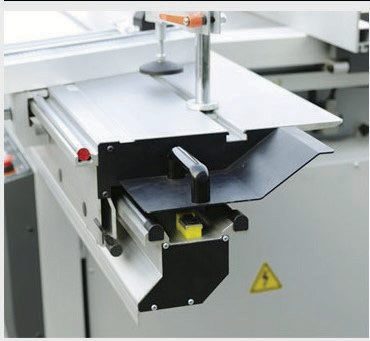

Table Structure
Germany’s processing technology features a maintenance-free sliding table and an original multi-cavity structure. It offers high precision, wear resistance, and torsional strength, ensuring reliable and efficient performance.
- Crafted with precision
Product Features

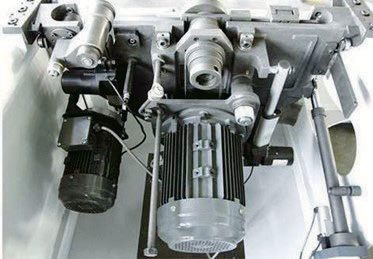

Saw Unit Structure
Germany Structure Main saw shaft: The overall dynamic balance processing ensures the quiet operation of the machine. Equipped with high-precision linear guides, maintenance-free bearings, and high-strength slideways.
- Innovation. Automation. Satisfaction.
Design Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
The frame structure is laser welded and completely enclosed. This guarantees that the machine runs quietly and has a high degree of stability.
Precision system using high precision ball screw, ensure accuracy up to 0.01mm.
Equipped with high-precision linear guides, maintenance- free bearings, and high- strength slideways.
Sturdy and wear-resistant design, the imported scale is clear and durable.
Technical Specifications
| Technical Specifications | Metric |
|---|---|
|
Length |
3850mm |
|
Depth |
3600mm |
|
Height |
900mm |
|
Weight |
1150kg |
|
Table size |
3800mm x 405mm |
|
Saw Blade Diameter (Recommended) |
300mm |
|
Maximum Saw Cut Depth |
80mm |
|
Main Saw Blade Speed |
3000 / 4000 / 5000 RPM |
|
Spindle Diameter |
30mm |
|
Saw Blade Tilt |
0 to 45° |
|
Main Motor |
5.5kW |
|
Scoring Saw Blade Diameter |
120mm |
|
Scoring Saw Blade Speed |
8000RPM |
|
Secondary Motor |
0.75kW |
