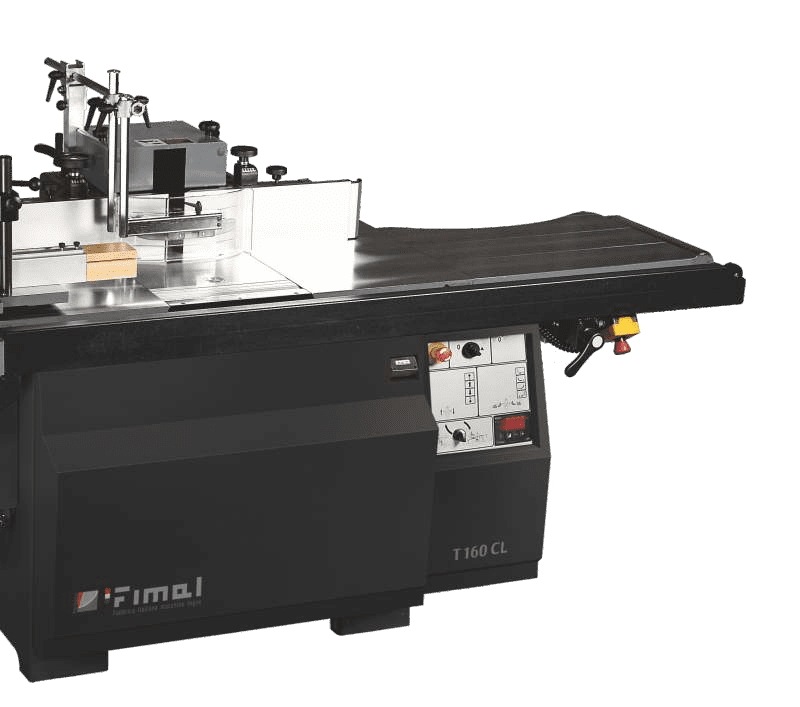

T160-TX160
The spindle moulders, with a fixed or tilting shaft, guarantee perfect profiling with the best accessibility for the speed changes, rapid adjustment and extreme precision, thereby eliminating the trial runs of all types of woodworking.
- Crafted with precision
Product Features
Sectioned Working Table
The sectioned working table without the front encumbrance can be adjusted without using any tools by means of a patented hold that unlocks, locks and positions in the same time the sliding table even with the assembled tool, allowing then to get the max support for the workpiece.
- Crafted with precision
Product Features

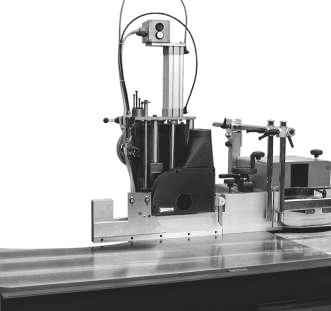

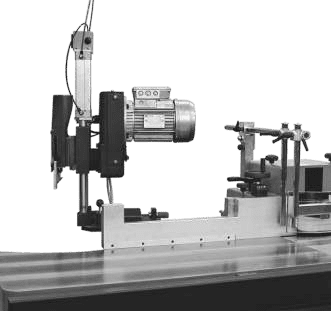

Spindle Moulder Fence
The patented spindle moulder fence is equipped with 2 levers locking and unlocking it quickly by a 90° rotation, while the removing and quick positioning of the table fence takes place with motorized rotation and lifting.
The positions are checked by special sensors.
- Crafted with precision
Product Features
6th Speed For The Sanding Operations
The control panels equipped with membrane pushbuttons. The rise and fall of the spindle is motorized (standard) and is mechanically read.
- Innovation. Automation. Satisfaction.
Design Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
Enhances operator control and ergonomics by positioning the tablet interface directly in front of the spindle for easy access and visibility during setup and machining.
Equipped with mechanical programming, dual read-outs, and anodised aluminium infeed/outfeed plates. The quick-flip mechanism allows the fence to be cleared from the worktable in seconds, improving workflow efficiency.
Features a tilting range of +45° to -45°, with an electronically displayed angle read-out. The spindle movement is powered by an independent motor, ensuring precise and effortless adjustments.
Technical Specifications
| Technical Specifications | Metric |
|---|---|
|
Length |
10 – 45 mm. (10-60mm optional 15) |
|
Depth |
7,0 mt/min ( 9,0 mt/min optional 100 ) |
|
Height |
15 – 65 mm |
|
Weight
|
0,4 – 3,0 mm |
|
Panel Thickness
|
1,00 Kg |
|
Minimum Panel Width |
230/400 V 50/60 Hz. – 3 Ph+N |
|
Minimum Panel Length |
140 mm. (PVC) |
|
Edge Width |
80 mm |
|
Edge Thickness |
6 bar |
|
Dimensions of machine |
1000 Kg |
|
Pneumatic Power |
3700 mm |
|
Power Supply
|
Min. 15 °C / Max. 45 °C (Min. 59 °F / Max: 113 °F) |
|
|
400V-415V 3P N 50Hz |
